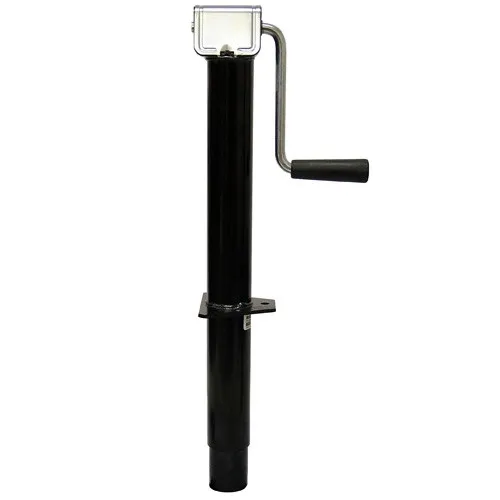

This great vintage style side wind tongue jack can usually be installed in your existing A-frame trailer coupler. The 1000# version, with its smaller diameter, is an excellent solution for many older, smaller trailers.
It is coated with a black rust inhibitive process called E-coat. The coating exceeds the ASTM standard 2000 hour salt spray test. The coating can also serve as primer for custom paint finishes when properly sanded before re-coating.
The jack incorporates precision molded, heat treated, copper alloyed metal gears and nuts along with high performance bearings.The internal screw is coated from top to bottom with a specially formulated lubricant that provides increased protection against wear and corrosion. The gear housing is accessible, making it easier to lubricate and repair.
1000# Version:
- Fixed outer (upper) tube OD is 1-7/8″
- Telescoping inner (lower) tube OD is 1-5/8″
- Jack stands 14-1/2″ above mounting plate.
- When retracted, tube extends 7-1/2″ below mounting plate.
- When extended, tube extends 21-1/2″ below mounting plate.
- Fastener holes in mounting plate are spaced 3″ apart and allow for a small amount of adjustability.
2000# Version:
- Fixed outer (upper) tube OD is 2-1/4″
- Telescoping inner (lower) tube OD is 2″
- Jack stands 13-1/2″ above mounting plate.
- When retracted, tube extends 8″ below mounting plate.
- When extended, tube extends 22″ below mounting plate.
- Fastener holes in mounting plate are spaced 3″ apart and allow for a small amount of adjustability.
Jack feet and casters sold separately.
