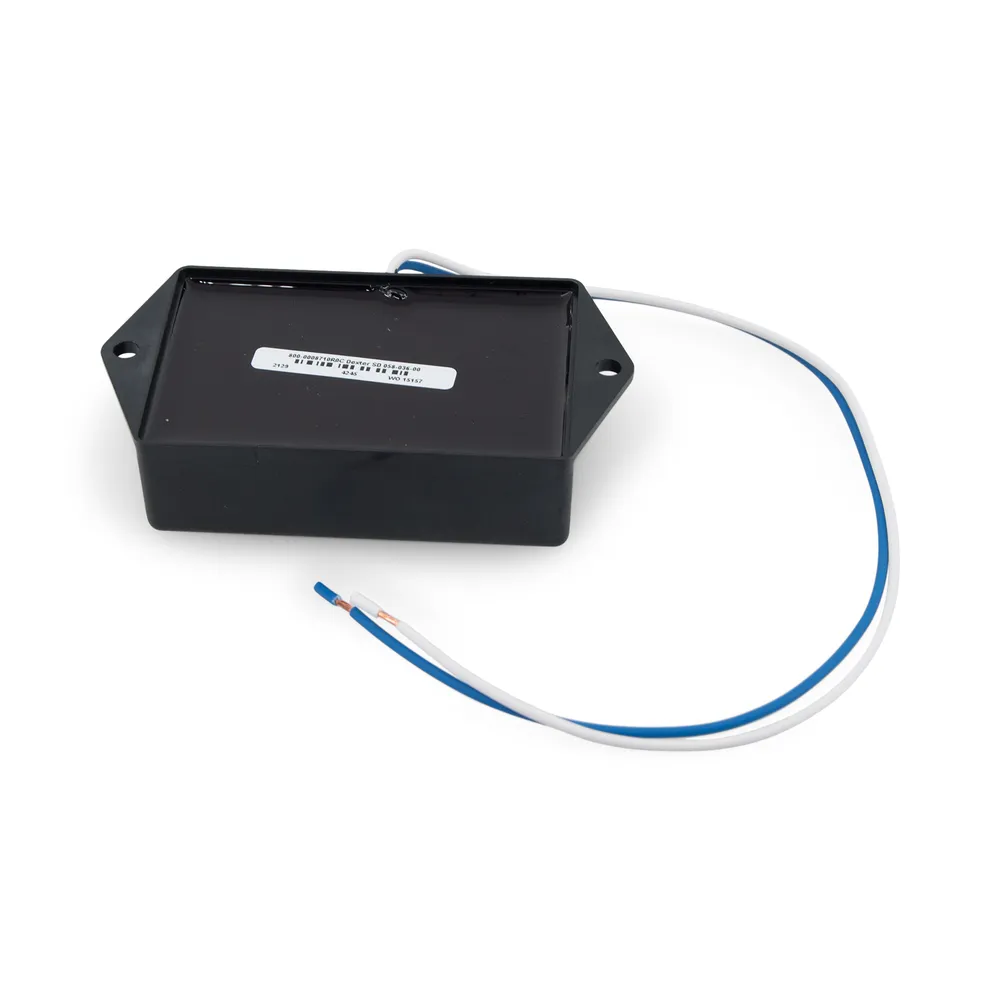

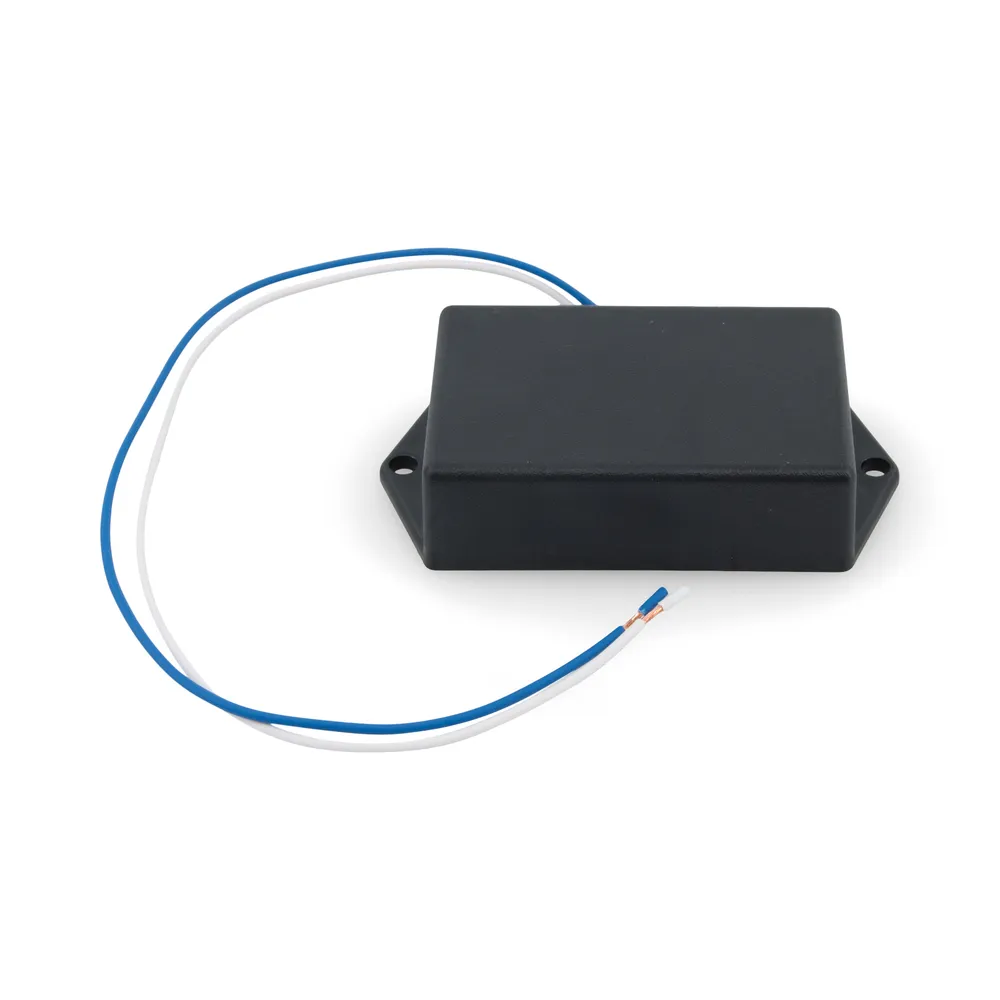

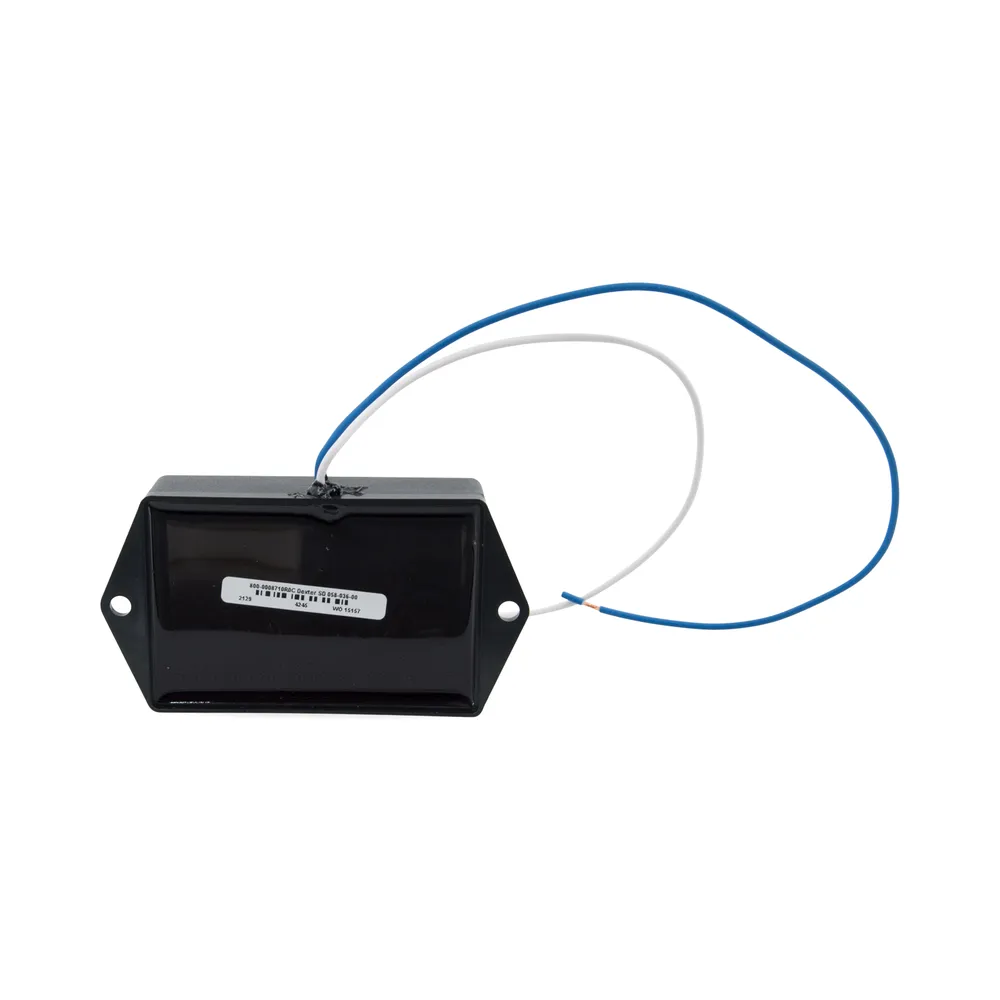

This product is Dexter Marine / Titans Part Number 4845900. This is the SD Converter Box with easy Plug capabilities that we offer for the Dexter Marine / Titan Brake Rite II SD and Dexter Marine / Titan Brake Rite Plug and Play Electric Over Hydraulic Brake Kits. This Brake Rite Converter Box mounts on the trailer, and accepts the 3 Prong Connector coming from either the SD Control Module (on Brake Rite SD Model), or the 3 Prong Connector coming from the Actuator Head Unit Housing (on Brake Rite Plug and Play Model). On both models, the Plug is the same, the difference is only in the device that the plug comes out of. On the SD Model, the separate Control Module houses the “brains”, on the Plug and Play model, the “brains” are integrated into the Actuator Housing. The purpose of this device is to allow the signals sent by your trucks brake controller to properly communicate with your Dexter Marine / Titan Brake Rite system. If your vehicle requires this Converter Box, and you do not use it, your trucks brake controller will not be able to work in harmony with your trailers brake system. The simply reason why this is needed, is because Factory Installed In Dash Brake Controllers are designed for use with Electric Brakes only, not Electric Over Hydraulic.
Vehicle Requirements for Dexter Marine / Titan Brake Rite SD Adapter with In Dash Brake Controllers
