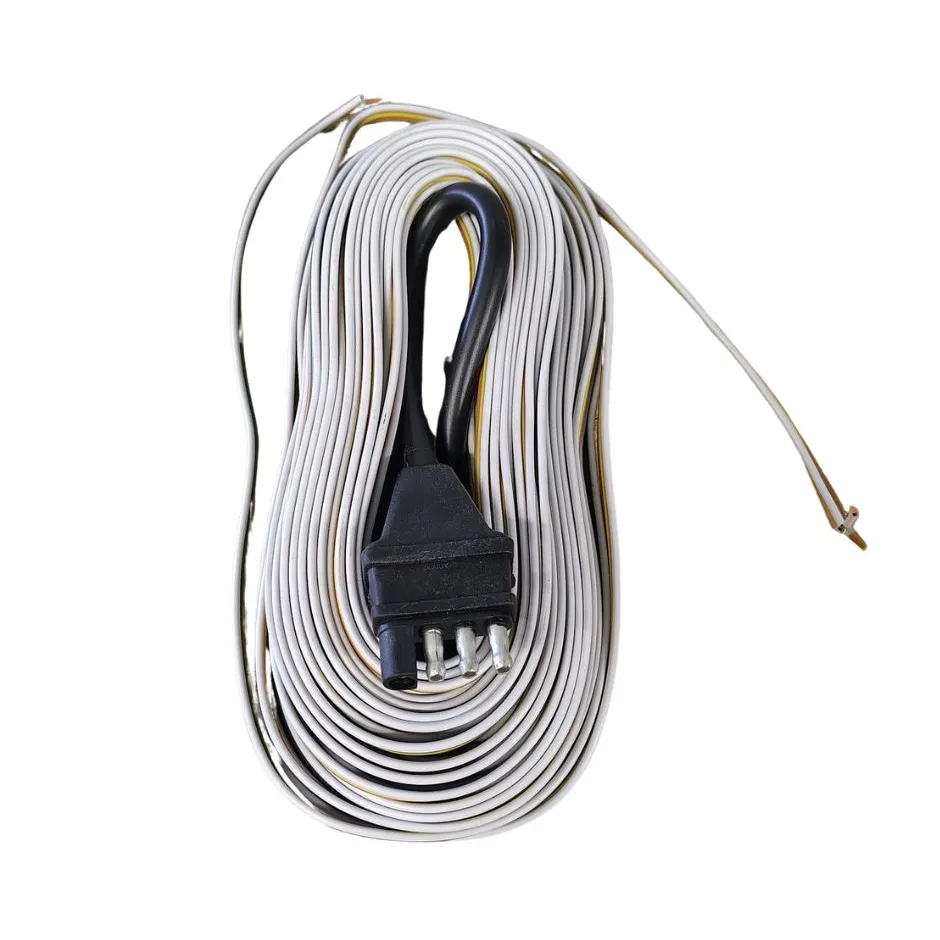

WIRE HARNESS W/COMPLETE GROUND 4 WAY
- PL2060 – 20FT
- PL2065-25FT
- PL2070 – 30FT
- PL2075 – 35FT
- These 4-way wire harnesses feature full-length wishbone-style wiring with dedicated full-length ground wires for improved reliability.

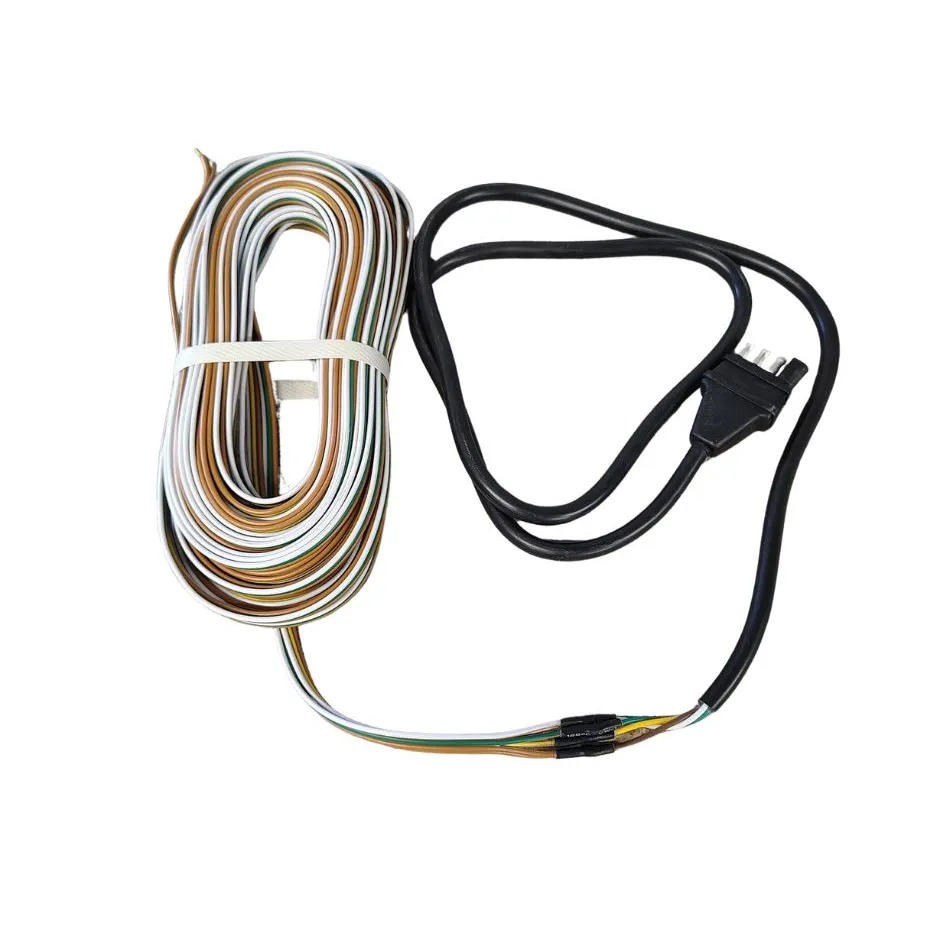

- Each harness includes a 30” vinyl wire protector at the plug end.
- 18 gauge wire
Wire Colors and Functions
- Yellow: Left turn signal & stop lights (port side)
- Green: Right turn signal & stop lights (starboard side)
- Brown: Tail, License, side marker and clearance lights
- White: Ground

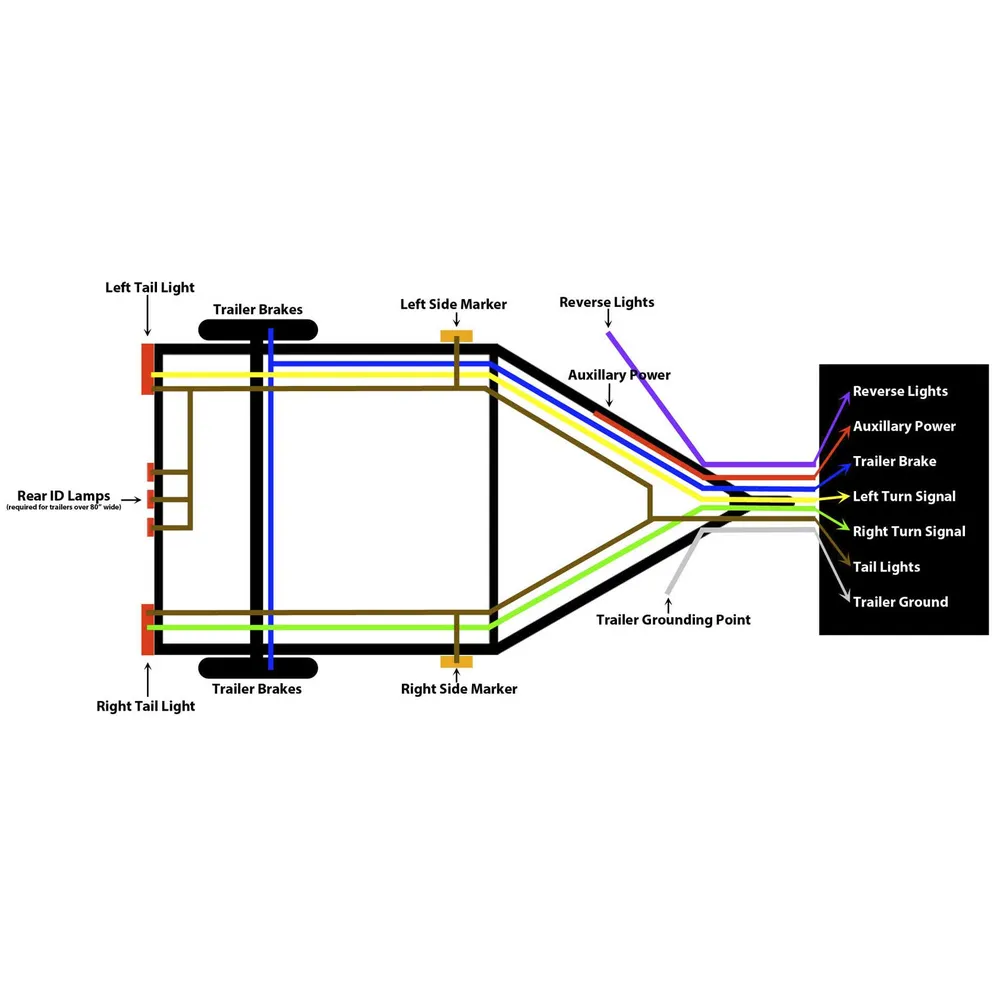

Harness Configuration
- Left/Port Side: Yellow, Brown, and White wires
- Right/Starboard Side: Green, Brown, and White wires
Key Features
- Full-length ground wire provides a complete ground connection to each light, eliminating the need to use the trailer frame as a ground.
- This design helps reduce electrolysis corrosion and improves long-term electrical reliability.
- 30” vinyl loom at plug end offers additional protection against abrasion and weathering.
