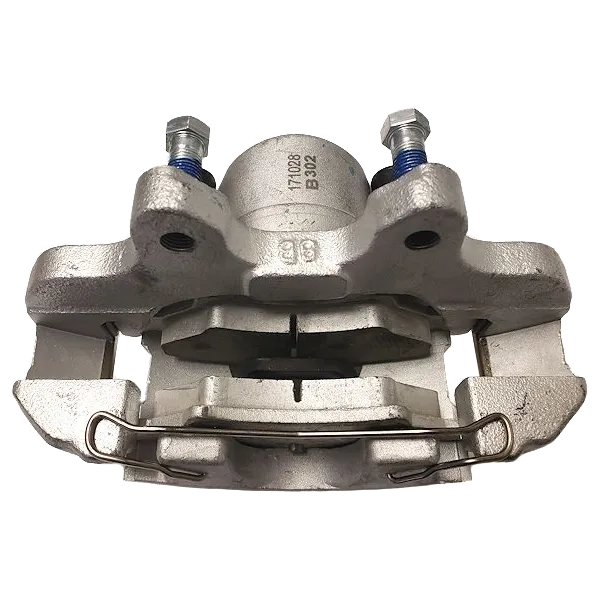

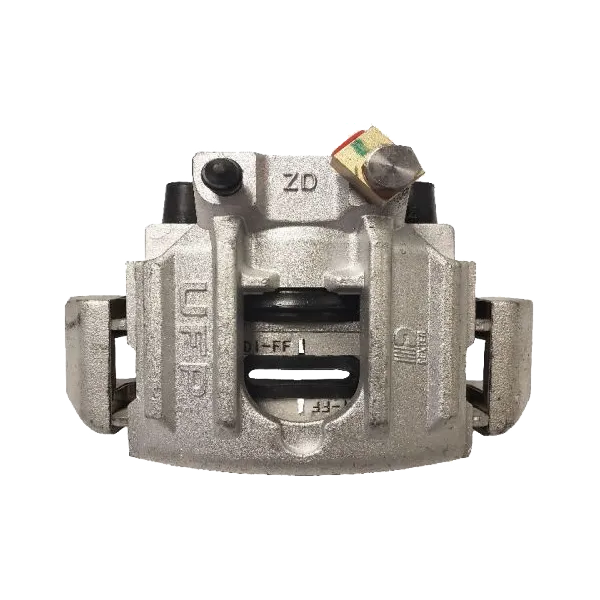

UFP Trailer Buddy Model DB-35 Disc Brake Caliper, Aluminum #42015
*** Universal mount design (no left or right) ***
This DB-35 model disc brake caliper has an aluminum body with an aluminum piston, designed for superior corrosion resistance, especially in saltwater. Includes pre-loaded organic brake pads designed for corrosion protection and reduced rotor wear. Model DB-35 Brake Calipers mount directly to trailer axle brake flange with 2 mounting bolts #33090 (included).
- Includes pre-loaded organic brake pads
- Aluminum body for corrosion resistance
- Stainless Steel Brake Pad Guides
- Stainless Steel Piston
- Stainless Steel Anti-Rattle Clips for Quiet Trailering & Braking
- Brake Pad Material Formulated for Corrosion Protection & Reduced Rotor Wear.
- Flex Controlled for Soft Braking
- Designed for Short Axle Overhangs (better fit between boat & trailer)
- Universal mount design (no left or right)
- Remove just 1 bolt to access caliper for service
- Large, accessible bleeder screw
- 2-Year Limited Warranty
NOTE: Caliper mounting bolts #33090 are included and should be torqued to 55 Ft. -lbs. The 7/16″ star washer is no longer necessary when Loctite #242 is used.
TECH TIP: Use a flexible brake hose or a brake line that will allow for brake caliper body to easily move 1/2″.
42015 Model DB-35 Trailer Buddy UFP Aluminum Disc Brake Caliper with Pads.
