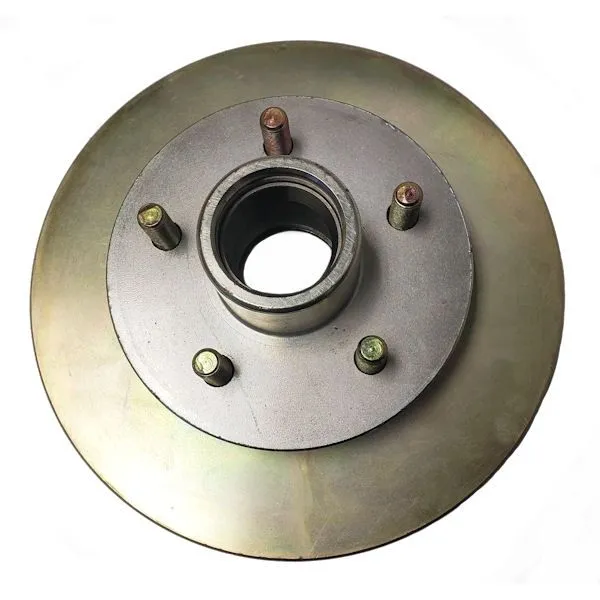

UFP by Dexter, Model DB-42 Disc Brake Hub/Rotor 10 1/4″ Diameter – 41035, 41038 (raw), HVR-1377. #41035
The Trailer Buddy Disc brake Hub-and-rotor features a ventilated design to allow heat to escape. Cast iron construction with a UFP exclusive Zinc Plated Plus finish is ideal for marine applications. This rotor should be used as a direct replacement for trailer buddy axles equipped with the DB-42 Disc Brake System. When used in saltwater, rotors should be flushed out with fresh water to extend rotor life.
Features:
- Manufactured from cast iron
- Superior wear characteristics at high temperatures compared to other types of steel
- UFP exclusive, Zinc Plated Plus finish for excellent corrosion resistance
- Races and wheel bolts included (bearings, and seals sold separately)
- Fits Trailer Buddy Axles only with up to a 3750lb. capacity and 13″ to 15″ wheels
- 3,750 lb. per pair capacity for 1 trailer axle

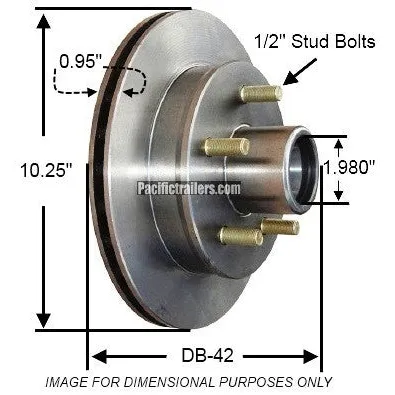

- 10 1/4″ Rotor Diameter
- 1/2″ wheel stud bolts with a 5 on 4.5″ pattern
- 5-year limited warranty
Bearing, Race and Seal Information:
- Bearings (sold separately), Inner bearing: L68149, Outer bearing: L44649
- Races (included), Inner race: L68111, Outer race: L44610
- Seal: (sold separately), Inner diameter: 1.68″, Outer diameter: 2.565″
- Spindle Size: 1 3/8″ x 1 1/16″ Tapered
HVR-1377- 41035, 41038 (raw) UFP Zinc Plated Disc Brake Trailer Hub/Rotor for Model DB-42 Trailer Buddy Disc Brakes
