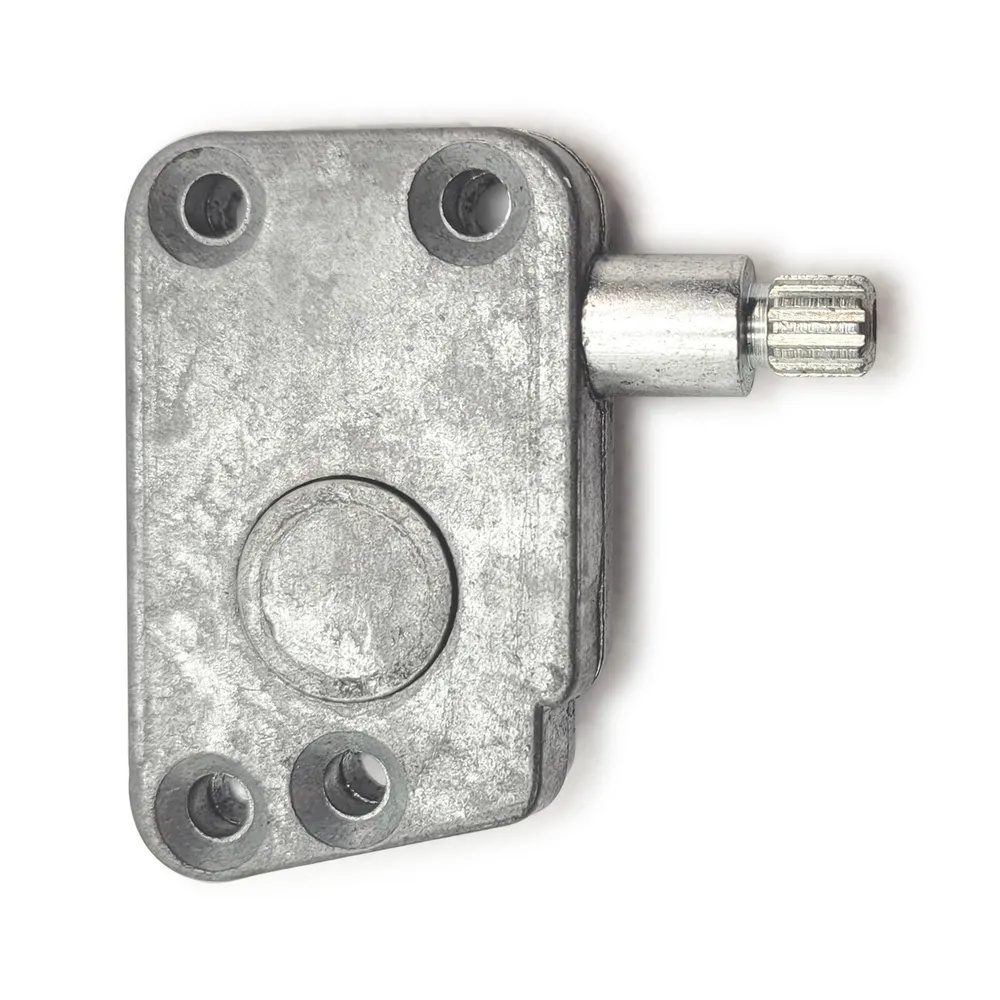

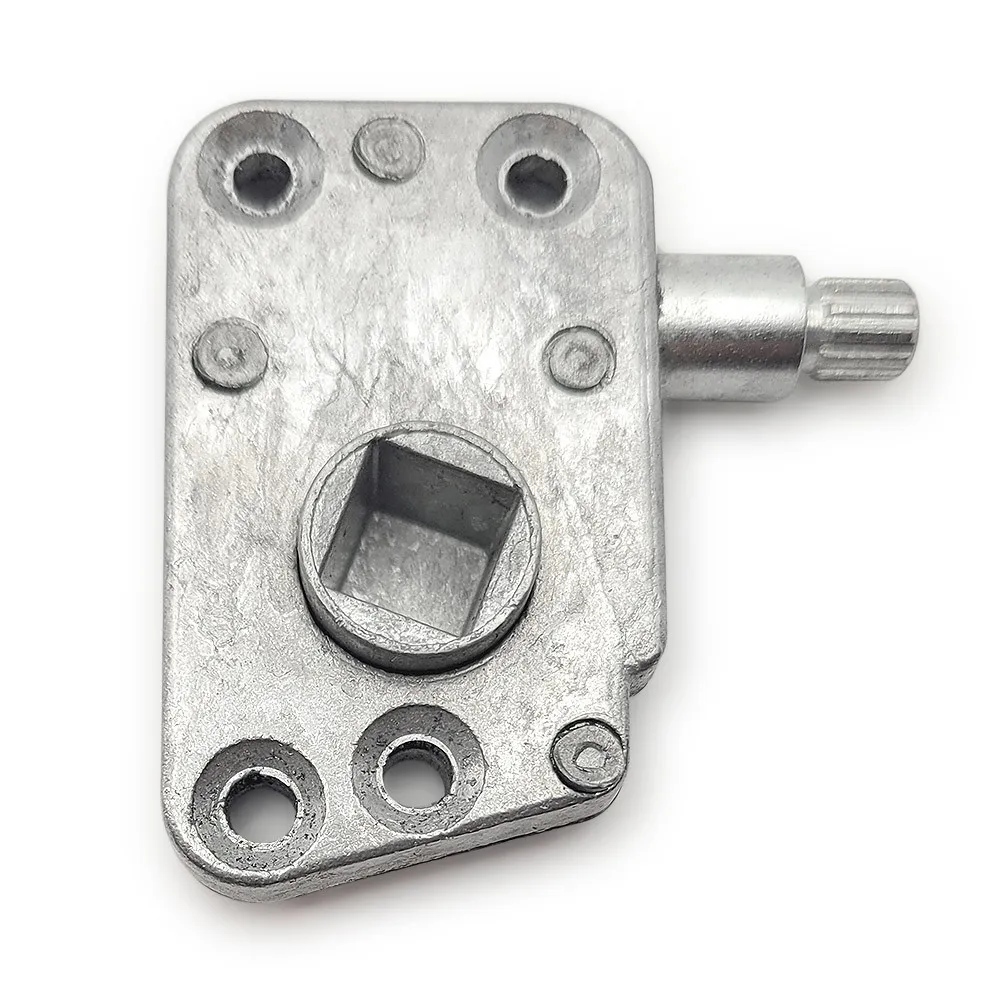

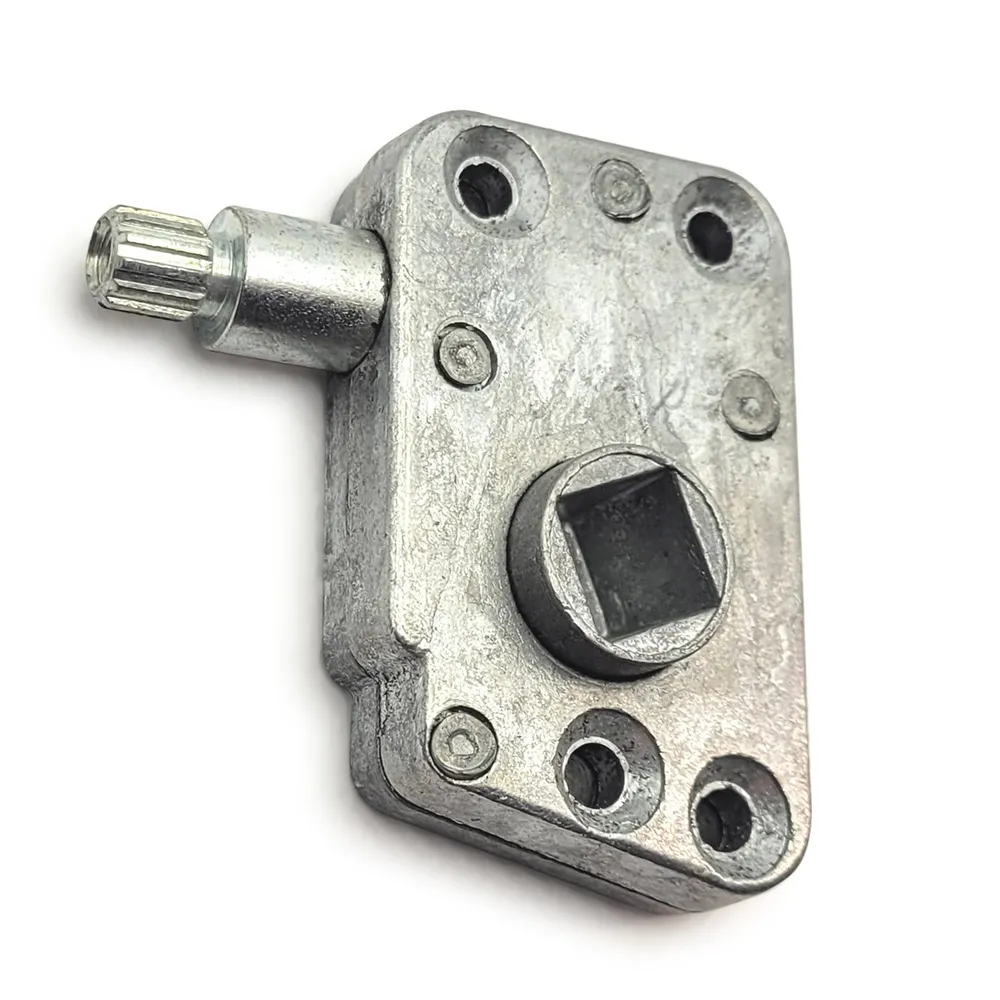

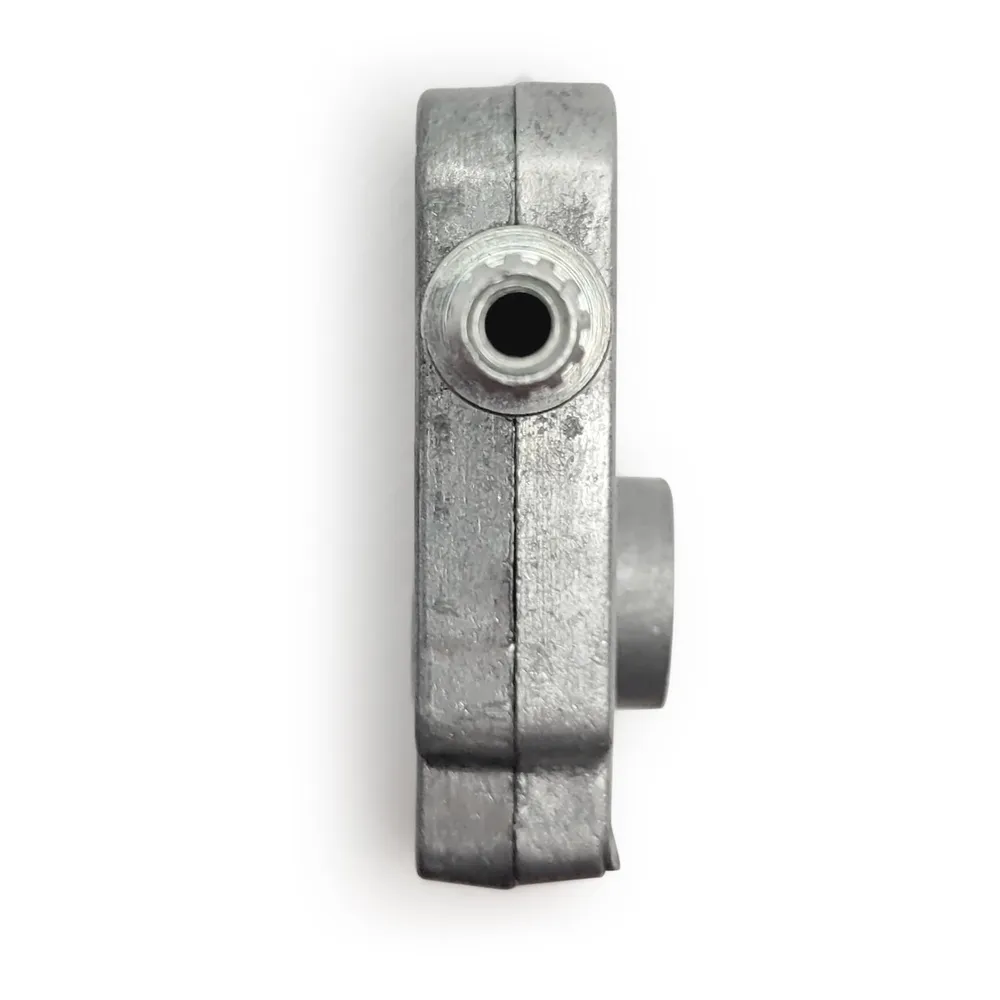

This square bar torque operator resembles several others so use the overall size and mounting hole spacing as your guide.
- Overall height: 2-1/4″
- Overall width of case: 1-5/16″
- Overall thickness of case: approximately 1/2″
- Handle stem smooth part: 3/8″
- Square shaft box protrudes: 1/4″
- Mounting holes at horizontal end: 2 spaced approximately 3/4′ on center
- Mouting holes at slanted end: 2 spaced approximately 7/16″ on center
