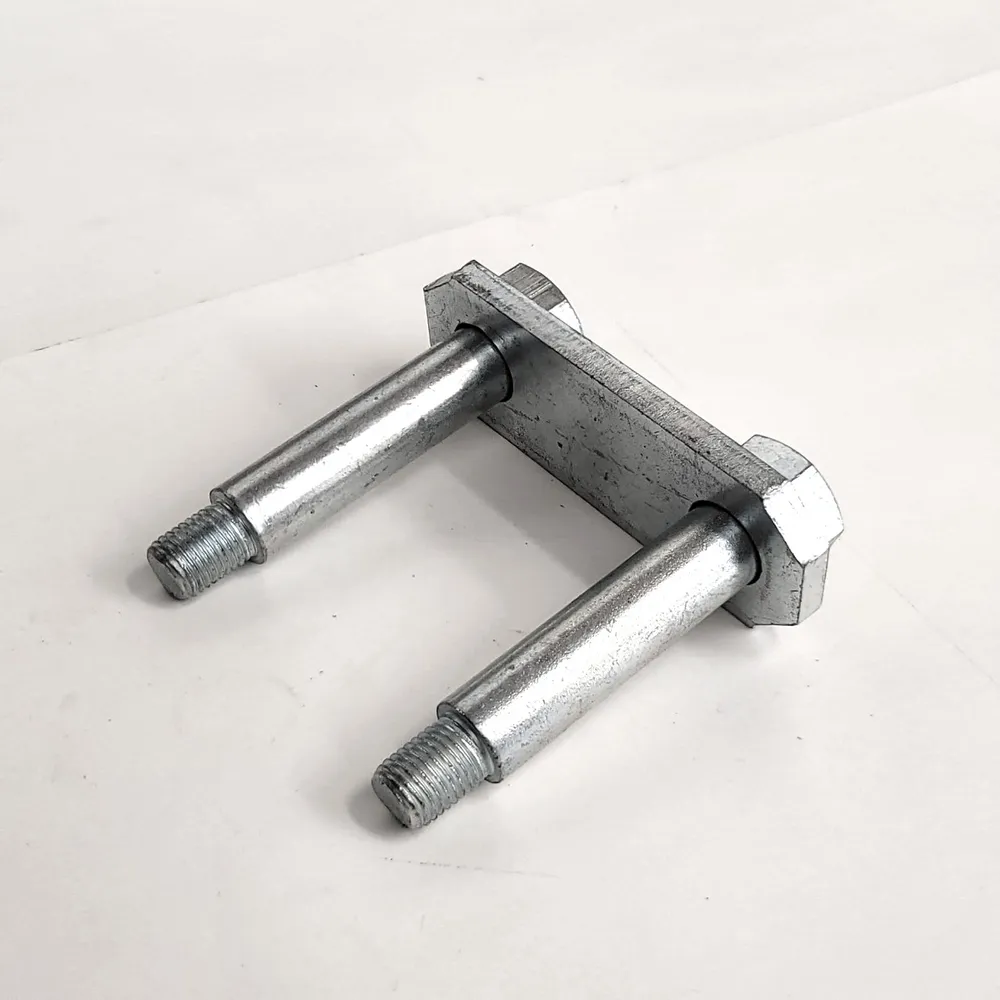

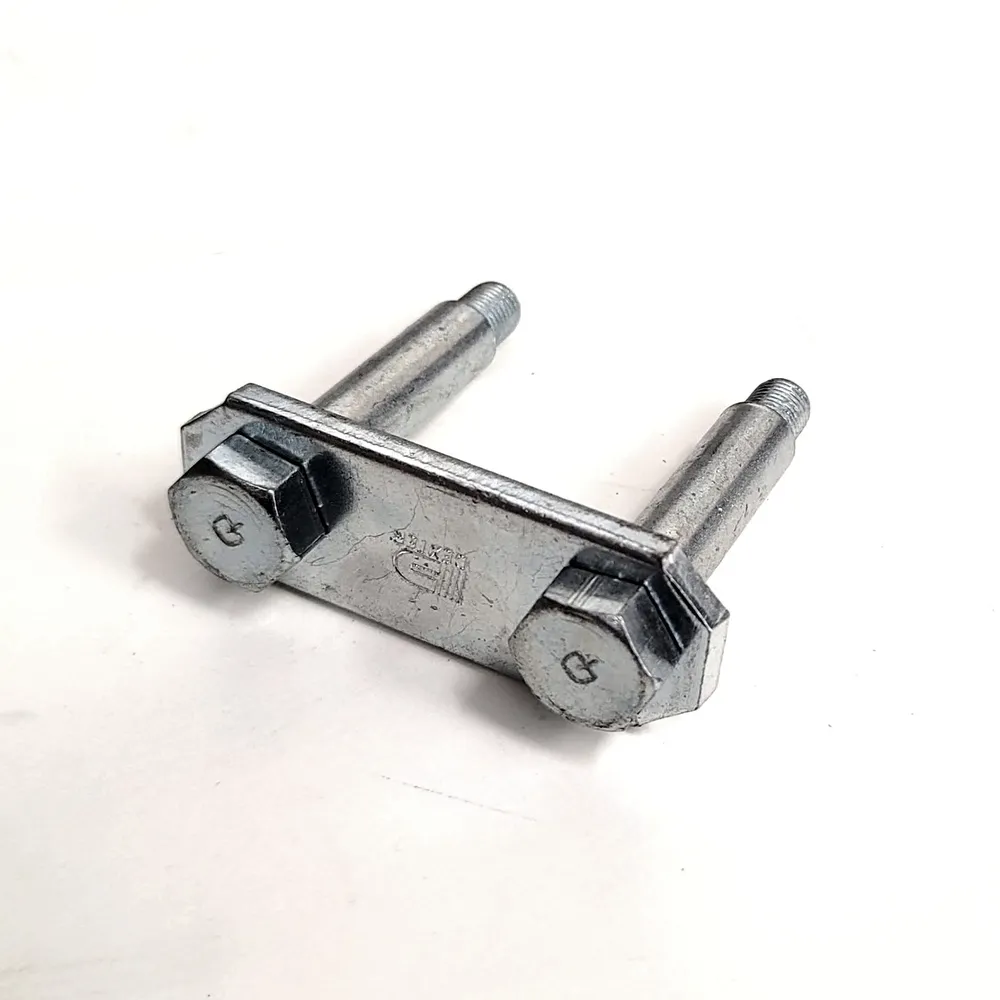

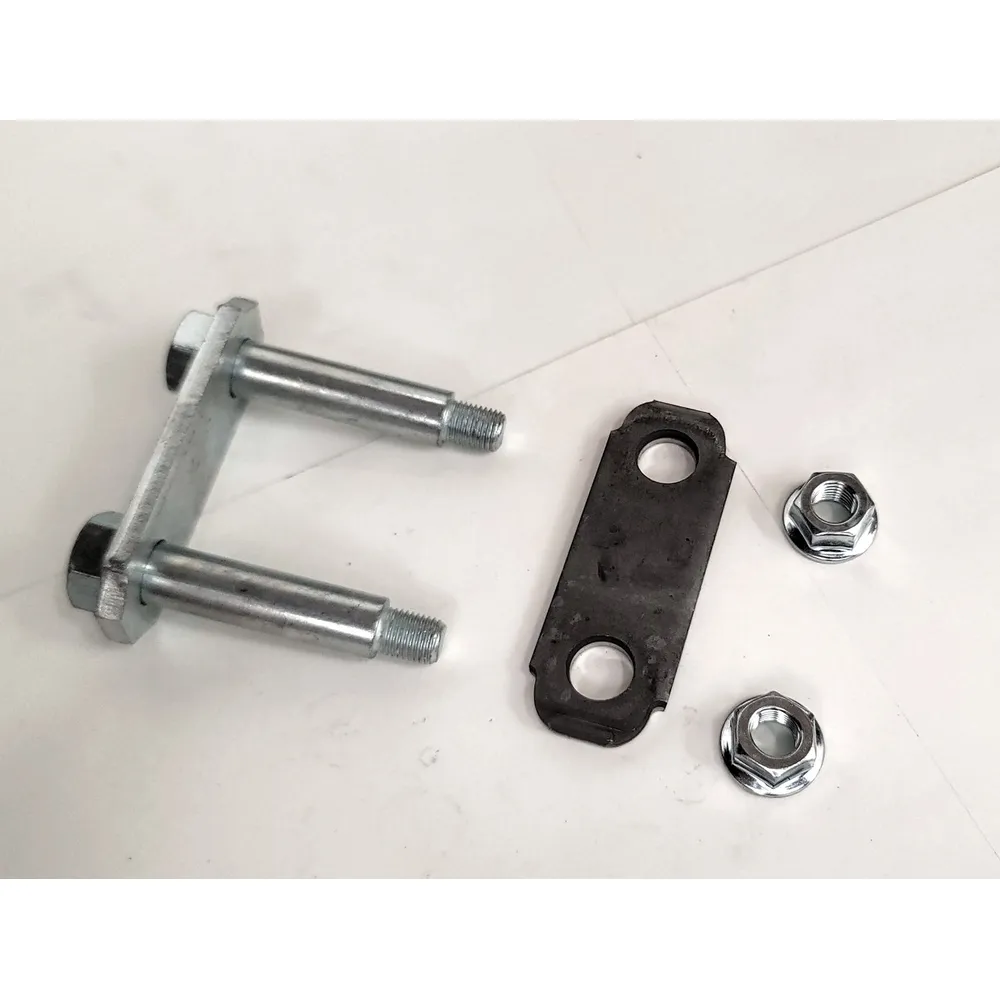

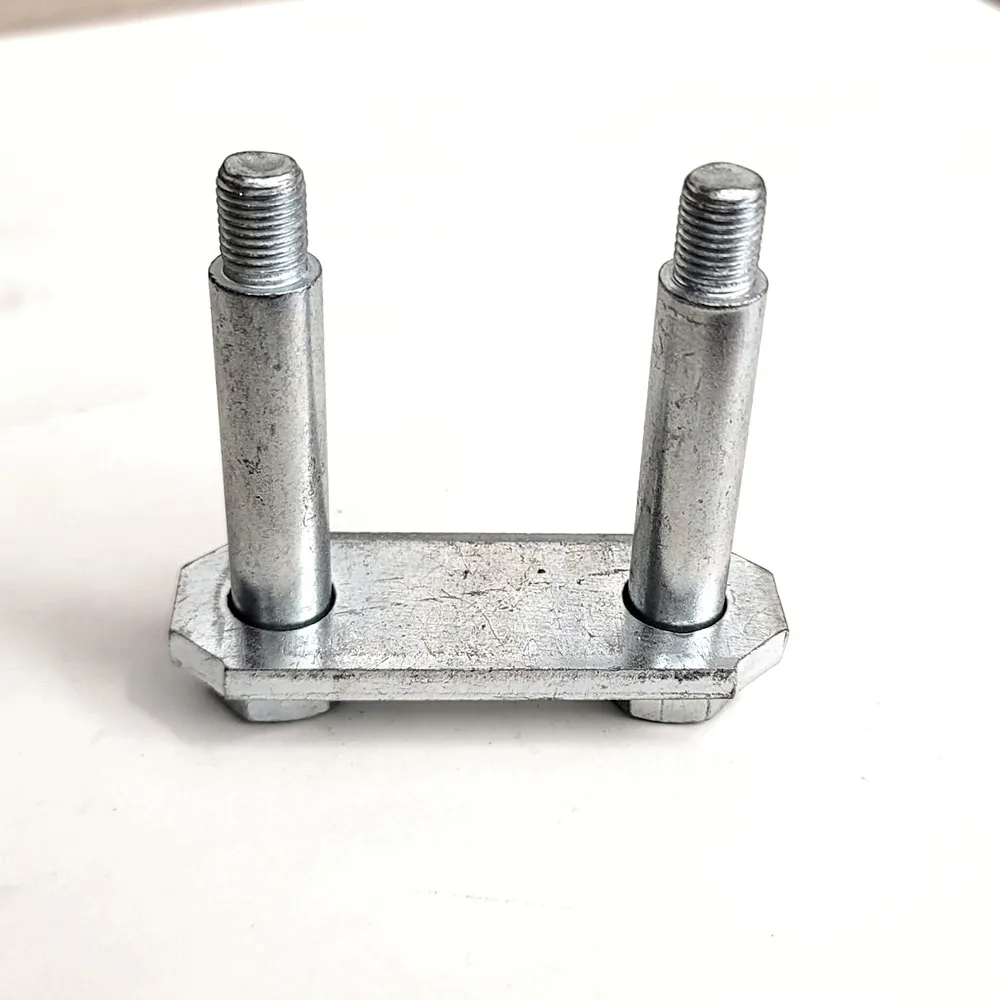

Ensure smooth and reliable trailer suspension with the Tandem Axle Strap Bolt Assembly, designed for optimal performance and durability. This shackle strap measures 2.25″ eye to eye, providing a precise fit for tandem axle applications. This assembly is one component of the shackle and needs to be paired with the “shackle strap” and two “shackle nuts” to complete one set
- COMMON COMPONENT FOR TANDEM AXLES: With a 2.25″ eye-to-eye dimension, this shackle assembly provides the correct fit for many tandem axle leaf spring systems, promoting proper suspension function and stability.
- REFRESH YOUR SUSPENSION: A crucial component in your trailer’s leaf spring suspension, this shackle strap helps absorb shocks and maintain consistent axle alignment, contributing to a smoother tow.
- EASY REPLACEMENT: Designed for straightforward installation, this shackle strap allows for quick and efficient replacement, minimizing downtime and getting your trailer back on the road sooner.
Specifications
| Used For | Hardware for Mounting Leaf Spring to Trailer |
|---|---|
| Fits Trailer Type | Universal |
| Fits Trailer Brand | Universal |
| Fits Axle Size | 2,000 – 7,000 lb |
| Eye to Eye Distance | 2.25″ |
| Overall Length | 3.5″ |
| Fits Hole Size | 9/16″ |
| Fits Leaf Spring Width | 1.75″ |
| Compatible Shackle Strap | Tandem Axle Shackle Strap – 2.25″ Eye to Eye 05-HKM008 |
| Compatible Shackle Nut | Shackle Lock Nut 7/16″ 05-HKM010 |
| Compatible Leaf Spring | Double Eye Leaf Spring for 3,500 lb Axle 05-AXSP01 Double Eye Leaf Spring for 5,200 lb Axle 05-AXSP02 |
| Torque Spec | 30-50 ft lbs |
| Cross Reference | 018-020-00 |
