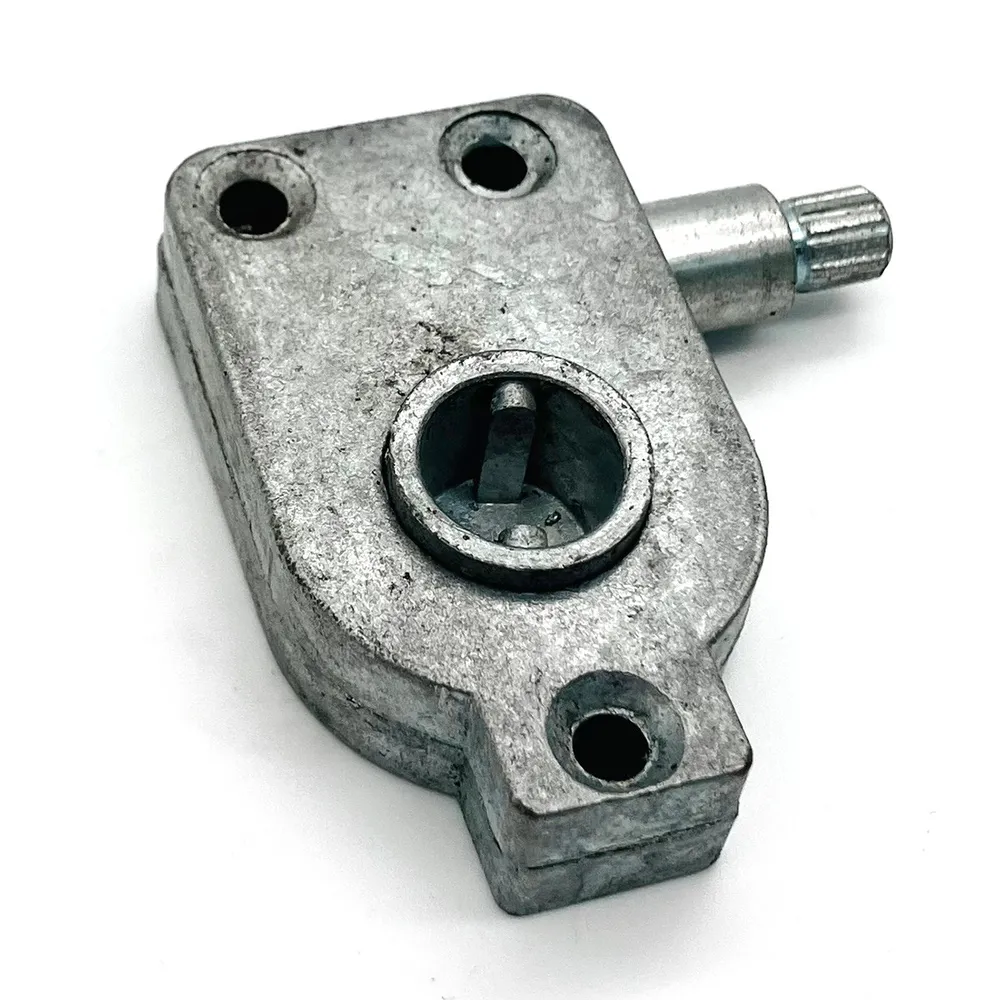

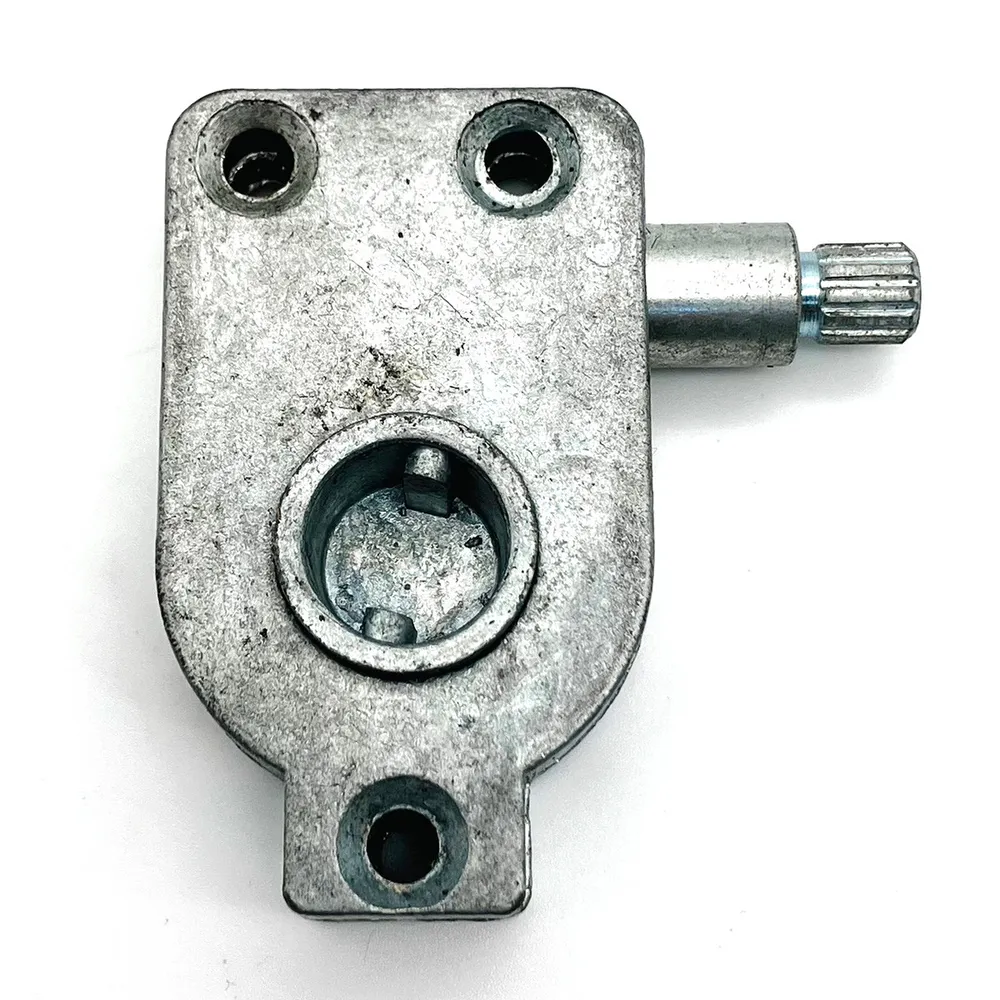

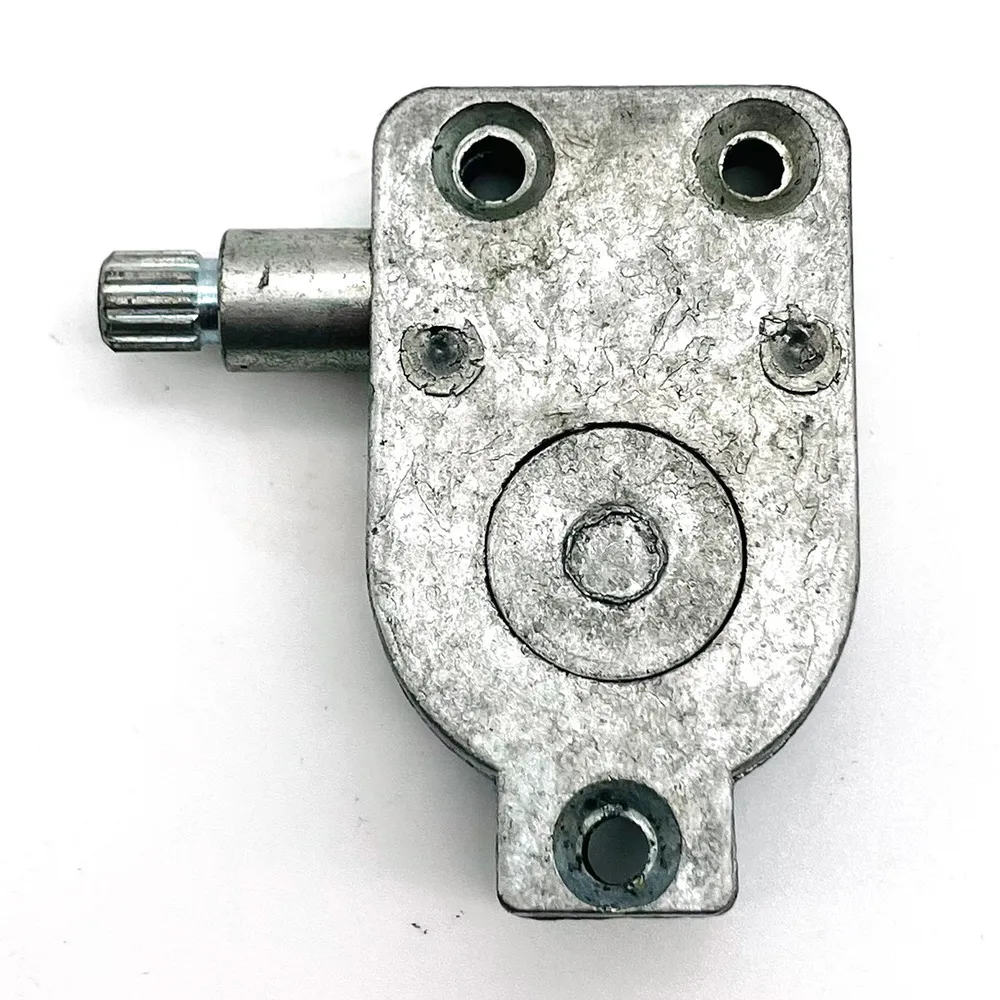

This side mount operator is designed to be used with a 1/2″ diameter round torque bar.
- Overall Height: 2 1/4″
- Overall Width excluding stem: 1 5/16″
- Overall thickness excluding rotating hub: 1/2″
- Inside diameter of projecting torque bar hub: 1/2″
- Length of projecting torque bar hub: 1/16″
- Length of smooth section of crank stem: 3/8″
- Mounting hole measurement two hole end : 3/4″ on center
- Mounting hole bottom single hole side is 1 7/8″ on center from each of the top holes
