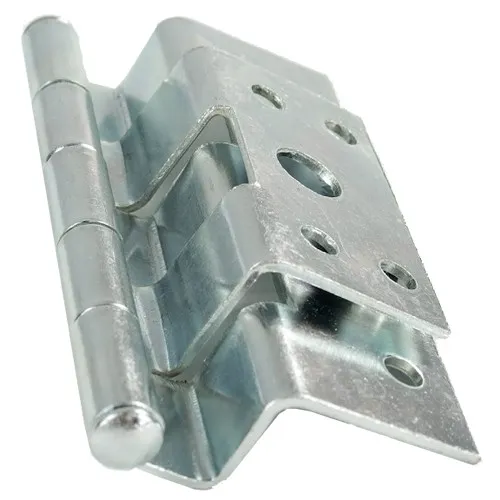

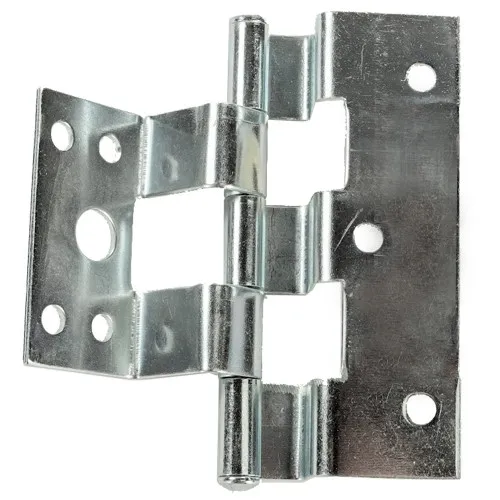

This unique offset hinge fits late 1960s Shasta trailers and other vintage trailers. Similar hinges were used on rear storage doors or trunks of some vintage trailers.
- The large leaf is 3-9/16″ x 1″. On this leaf, the distance from both the top and from the bottom mounting holes to the middle mounting hole is 1-3/8″. The distance from the top mounting hole to the botom mounting hole is 2-8/16″.
- The small leaf is 2-1/16″ x 1″. On this leaf, the mounting holes are 1/2″ apart (from left to right) and 1-3/8″ apart (from top to bottom).
- The center of the pin to the back side of the small leaf is 5/16″.
- The cent of the pin to the back side of the large leaf is 1/2″.
Please let us know if you require other dimensions we have not listed above.
Zinc plated steel.
Sold individually.
