Kodiak Disc Brake Kit, 10″ Dacromet Hub/Rotor – 5 on 4.5, 3500lbs. #2/HRCM-10-DAC-KIT

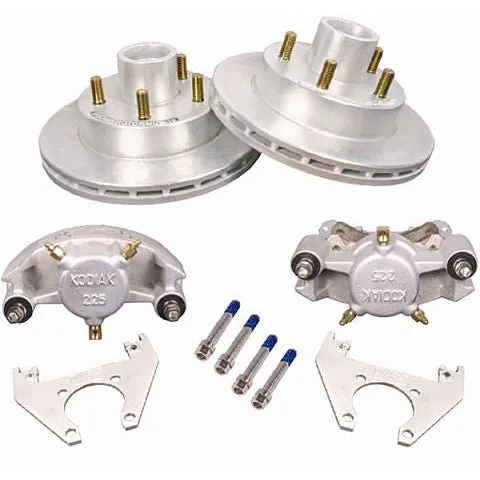

KODIAK Trailer Disc Brake Kit complete for 1 axle. Kit includes: (2) integrated hub/rotors, (2) Calipers with (4) stainless steel mounting bolts, (2) caliper mounting brackets. Designed for 13″ or larger wheels with a 5 on 4.5 lug bolt pattern. Mounts to standard 4-Bolt axle brake flange.
Features:
- Dacromet finish on Rotors, Calipers and Mounting Brackets
- corrosion resistance for freshwater or saltwater use
- 400-600 hours salt spray testing
- Integrated 1-piece hub and rotor assembly
- Minimizes lateral run-out to prevent warping
- balanced hub and rotor allows for smoother ride
- Uses industry-standard bearings and seals (sold separately) – races included
- L68149 Inner Bearing, L44649 Outer Bearing
- 171255TB Grease Seal, 1.71″ ID, 2.56″ OD
- Vented rotor helps dissipate heat which results in cooler running brakes
- Self adjusting, cast iron calipers allow for smoother and more equal braking performance
- calipers have a low-drag design that retracts the piston farther than other calipers for cooler-running brakes
- 2-1/4″ stainless steel piston standard with calipers
- calipers loaded with ceramic brake pads
- Caliper Mounting Brackets attach to standard 4-bolt brake flanges
- Off-Set, design ensures that load is placed on bracket, not bolts
- 3-year limited warranty and made in the USA
Application:
- This kit is for use with:
- standard 3500lb. trailer axles with 4-Bolt brake flange configurations
- 1 3/8″ x 1 1/6″ tapered spindles (very common)
- 5 on 4.5″ lug pattern (13″ and larger wheels)
2/HRCM-10-DAC-KIT KODIAK Disc Brake kit for 1 axle, 2 wheels and 3500lb. trailer axles, Dacrament with a 5 on 4.5 lug pattern.
