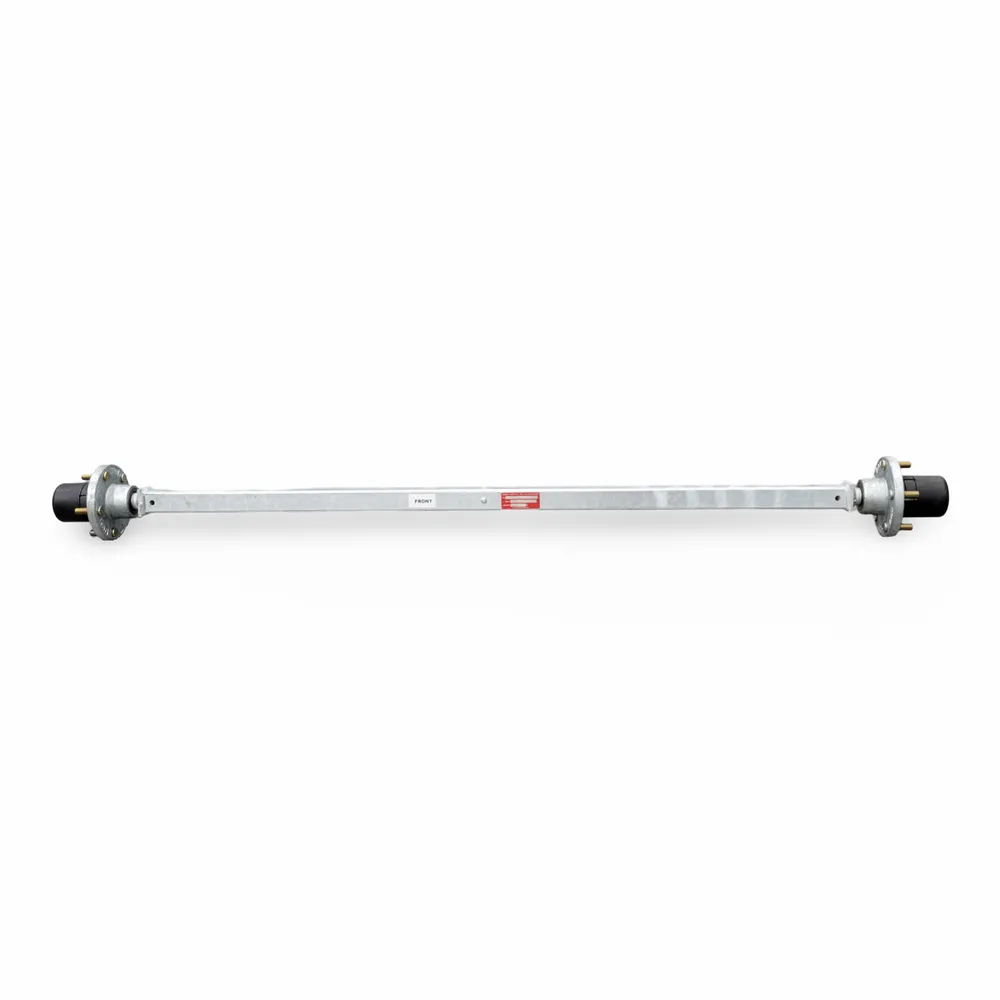

Galvanized Boat Trailer Axle 57 inch Hub Face 46.5 inch Spring Center 1500lb with Pre-Installed 5 Lug Idler Hubs

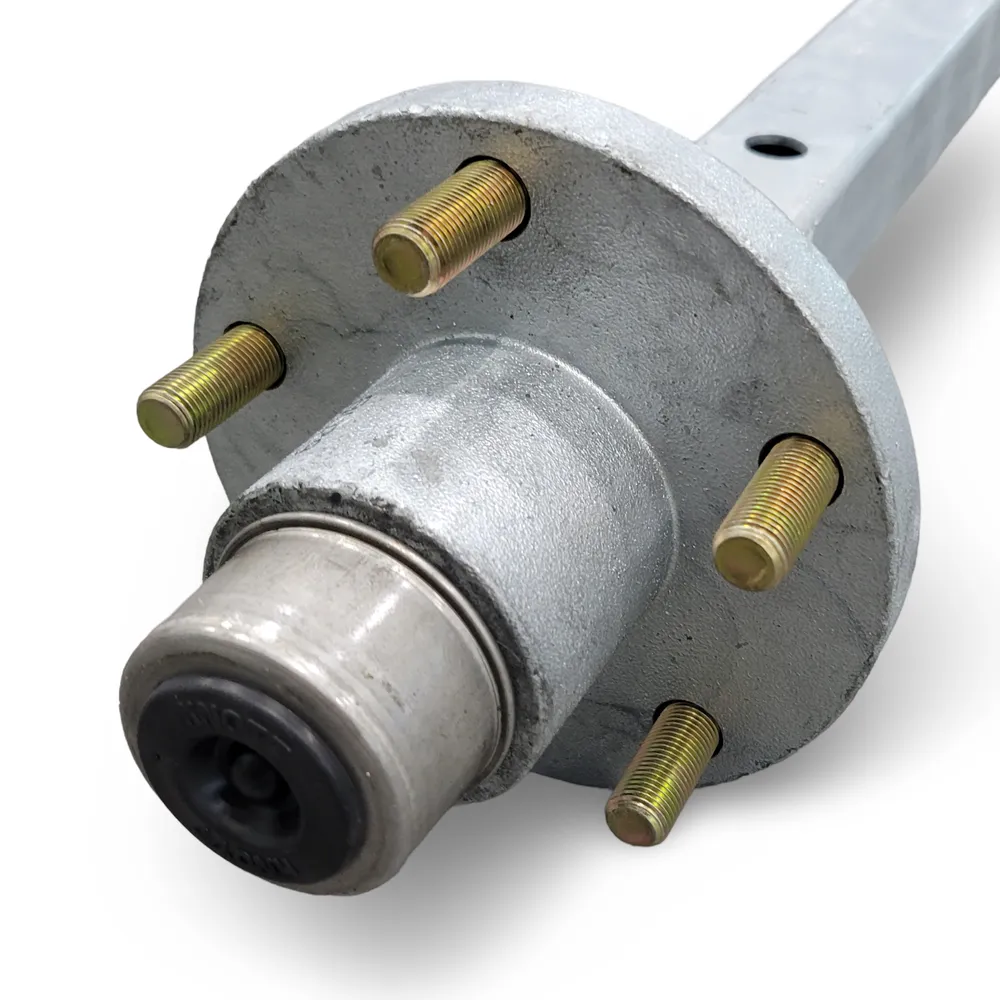

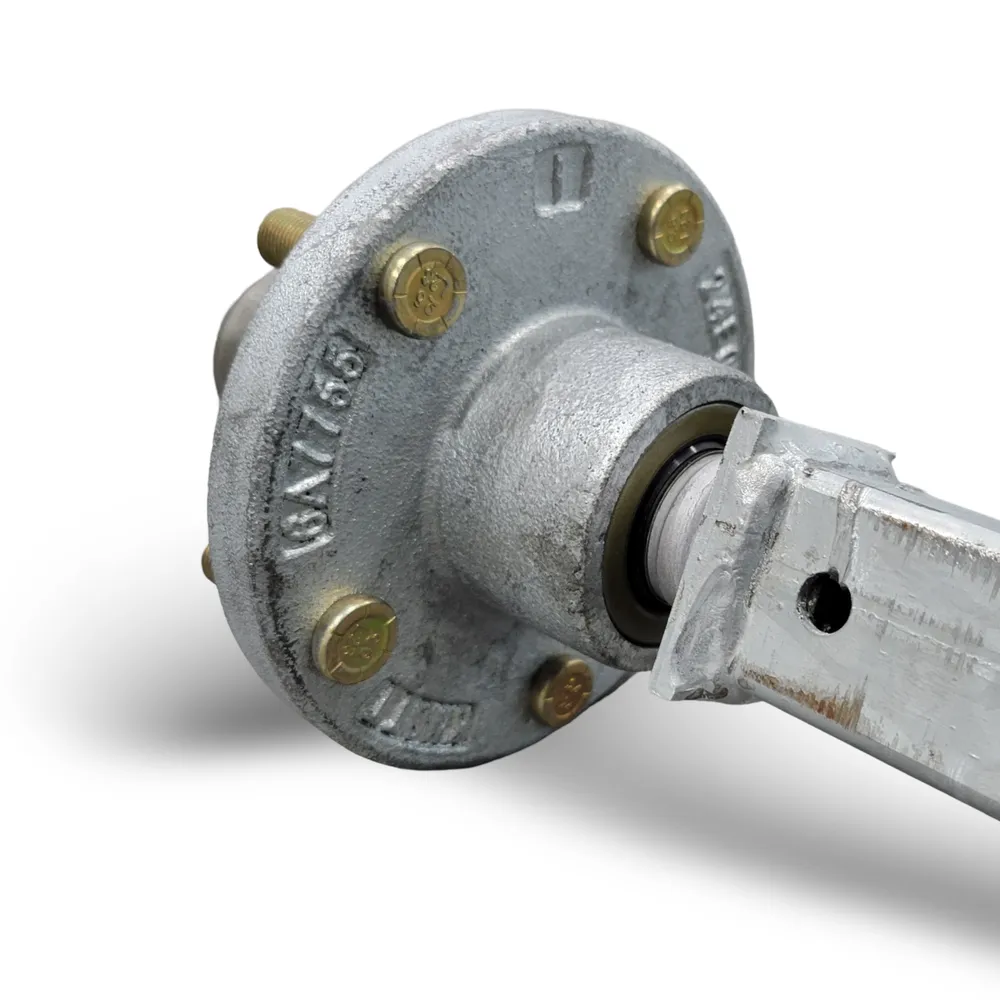

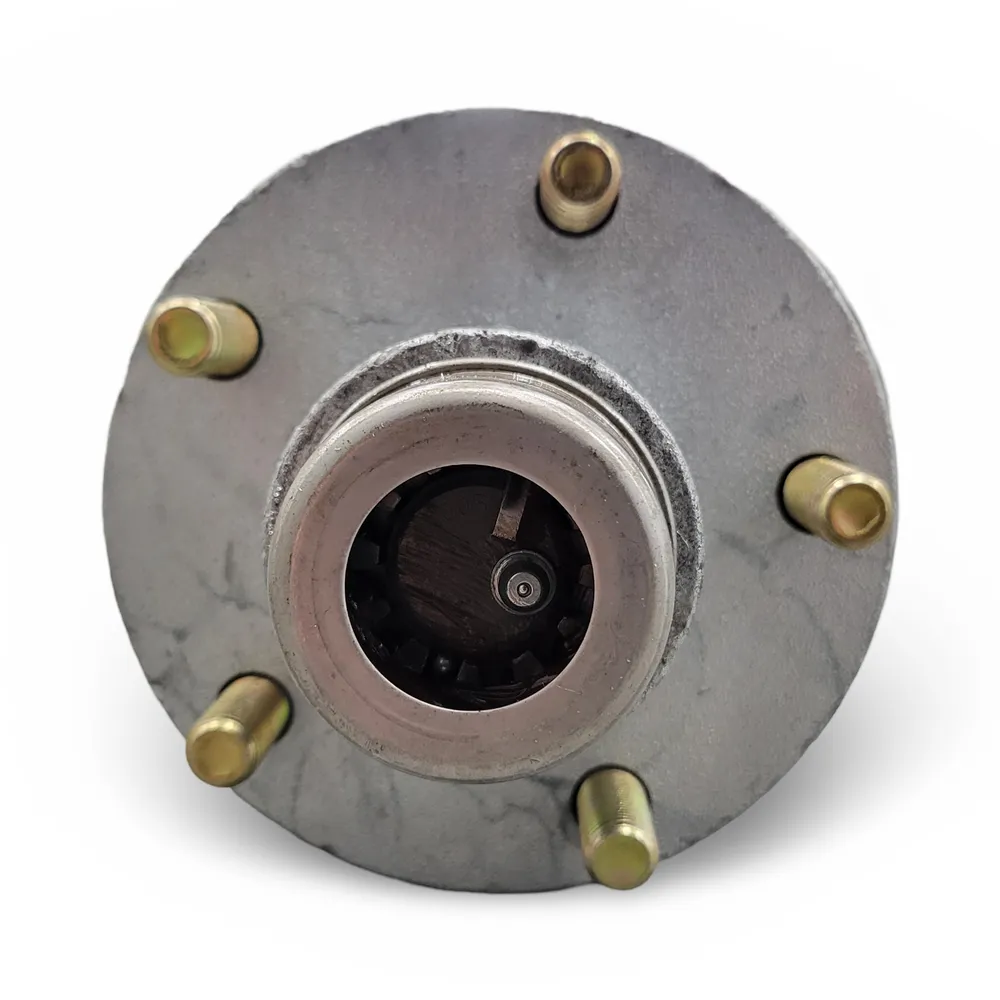

Replace your Galvanized Boat Trailer Axle AND your 5 Lug Idler hubs together with this Boat Trailer Axle made by Autoflex-Knott, which comes equipped with 5 Lug Galvanized Trailer Idler Hubs pre-installed. Everything Ships and is delivered together and ready to go, you can re-use your Square U Bolts and Mounting plates if they’re still in good condition, or you can pick up new ones here on at our store along with your new axle. This 1,500lb capacity 1.5 inch square Axle has spring center mounting holes drilled at 46.5 inches center to center on the axle beam, with a hub face measurement of 57 inches. This Galvanized Axles by AutoFlex-Knott has pre-drilled mounting holes on the axle beam to ensure proper weight distribution, so for this 57-Inch Hub Face Trailer Axle, it can be safely mounted on trailers that have a Spring Center Measurement of 46.5″. If your trailer has a spring center measurement outside of this range, you might need a shorter or longer hub face axle in order to fit your trailer frame. The other important measurement to take into consideration when sourcing a new Boat Trailer Axle is the Hub Face Measurement. This Measurement is taken from the outside face of one hub to the outside face of the other hub. This is the standard measuring length on most axles, meaning a 90 inch trailer axle will typically be a 90 inch hub face, not a 90 inch overall length. Because Trailer Tires and Wheels usually have a 0 offset, this means the hub face measurement is also the center-of-tire measurement for your trailer. Your replacement trailer axle should have a hub face that puts your tires safely under the fenders, and if you need to go to a longer axle to accommodate the spring center measurements above, keep in mind that that means you will probably need to adjust your fenders. This Axle’s Hub Face Measurement is equal to 57″. This Trailer Axle has a Weight Capacity of 1,500lbs. The included pre-installed 5 on 4 1/2″ bolt pattern hubs contain the standard 1 1/16″ x 1 1/16″ bearing combination (Bearing Number 44649 for both the inner and outer bearing) that is commonly seen in trailer hubs of this weight capacity, and the grease Seal has an inner diameter of 1.25″. Because this is a 1,500 lb axle there is no brake flange, so if the axle you are replacing has one you will likely want to take a look at some other axles in our 3,500lb Capacity Galvanized Boat Trailer Axles. Knott brand components are always high-quality and built-to-last. This Axle is no different, it’s made of 1.5 x 1.5 steel tubing that is 1/4″ thick, and then hot-dipped galvanized for excellent corrosion resistant properties. Axle Specifications: – 57″ Hub Face Measurement – Spring Center Measurement 46.5″ – Hot Dipped Galvanized Steel Tubing (1.5″ x 1.5″ x 1/4″ thick) – Drainage Holes to allow Water to drain out of the tubing Hub/Spindle Specifications: -5 on 4.5″ Bolt Pattern – Inner Bearing – 44649 or 1 1/16 inch inner diameter – Outer Bearing – 44649 or 1 1/16 inch inner diameter – Grease seal – 1.25 inches inner diameter – Stainless Steel Wear Sleeve on the Axle Spindle – EZ Lube Grease Fitting on the end of the Trailer Spindle
