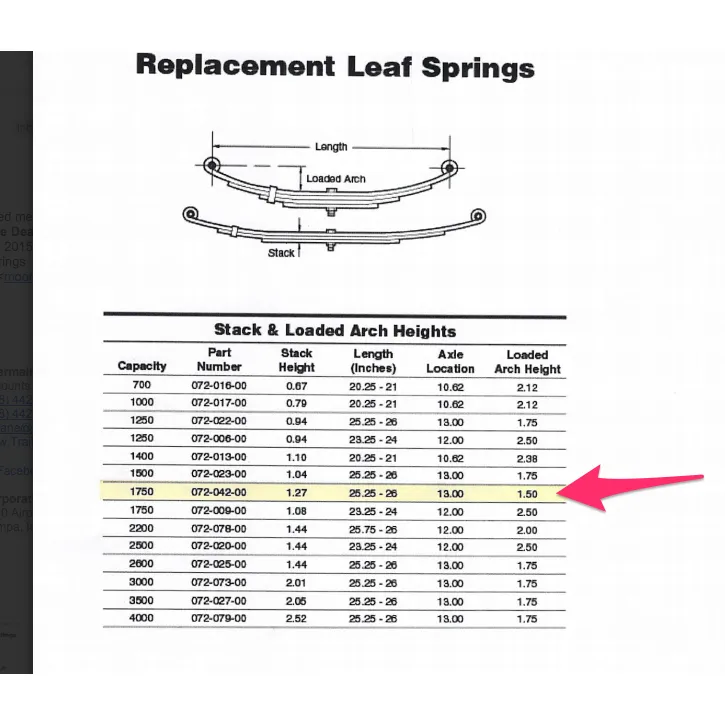

The supplied double-eye spring entry lists a 25-1/4-inch eye-to-eye distance, 1.75-inch width and four leaves. The table gives 1,750 lbs as capacity, separately from its 3,500-lb axle application label.
Listed details
| Capacity | 1,750 lbs |
|---|---|
| Eye to Eye Distance | 25-1/4″ |
| Eye Diameter | 9/16″ |
| Bushing | Included: Nylon |
| Number of Leaves | 4 |
| Stack Height | 1.27″ |
| Spring Width | 1.75″ |
These details are transcribed from the supplied listing and await manufacturer verification.
Before selecting this part
Confirm whether capacity refers to one spring and how the eye spacing is measured. Compare bushing and bolt dimensions, and do not treat a changed spring as an increase to the trailer rating.
