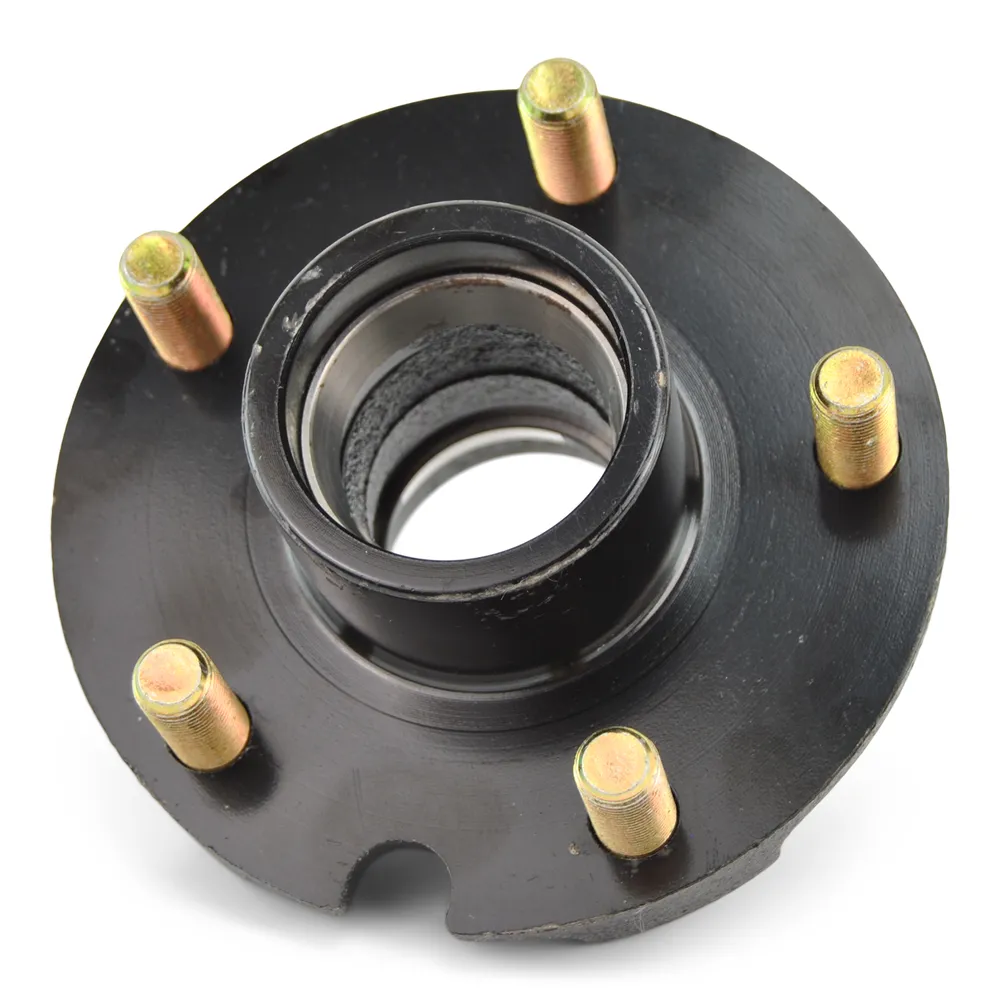

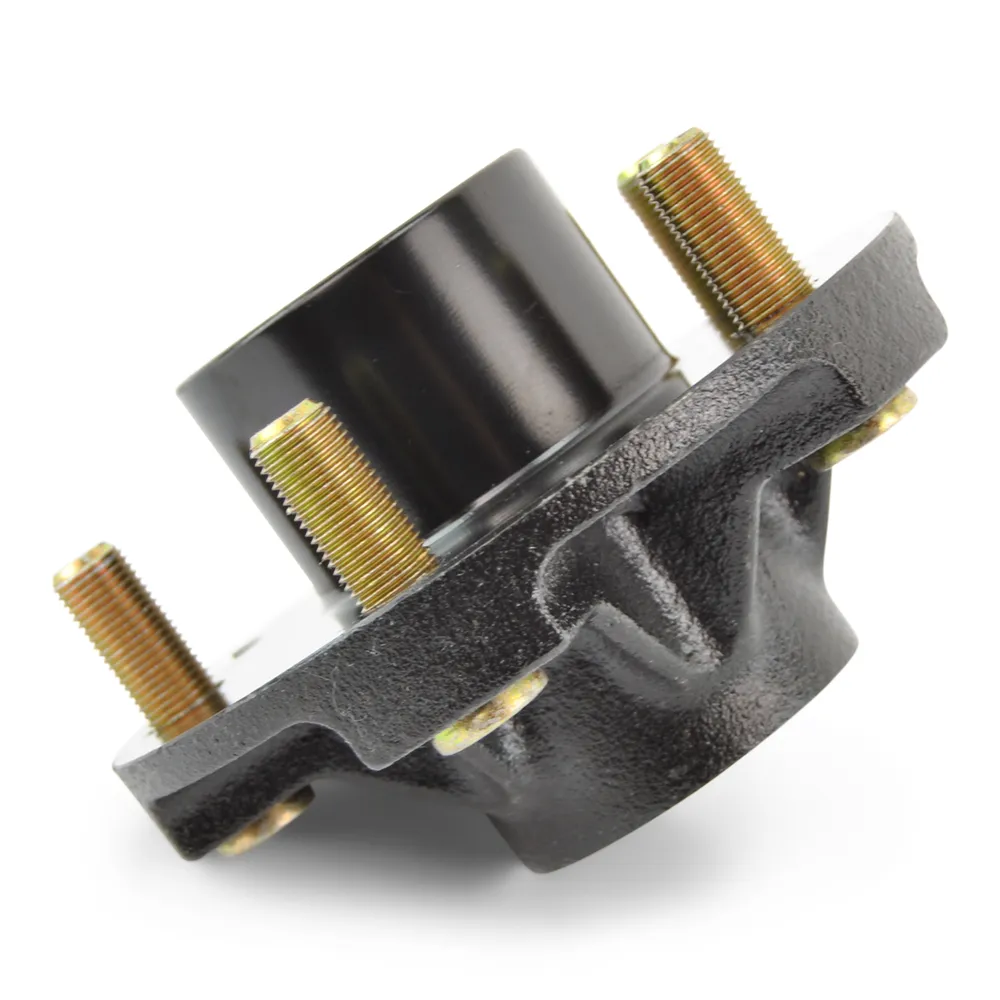

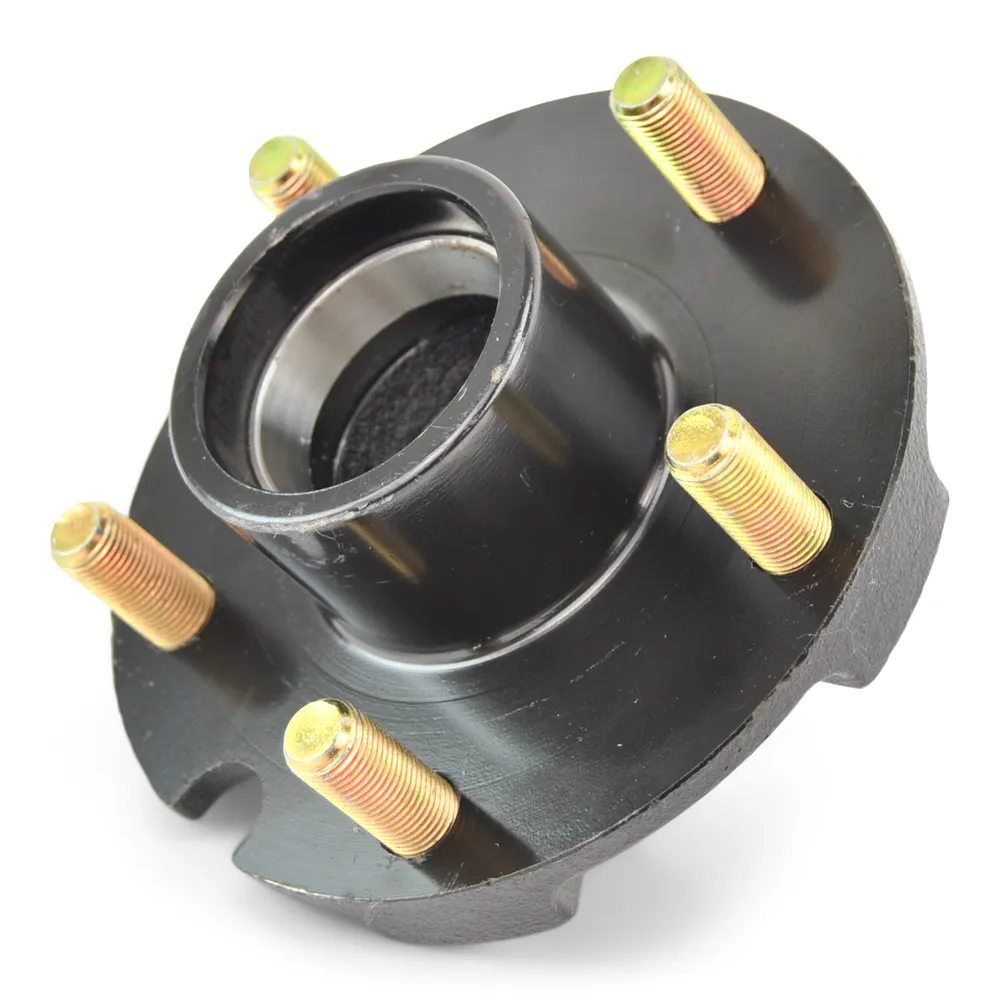

Boat Trailer Short Hub 5 Lug fits 2,000 lb. Axles with 1 1/16in Bearings

This Trailer Short Hub Features a full end-to-end measurement of 3 1/2 inches. The interior of the hub measures 2 1/2 inches from outside of race to outside of race. Trailer Short Hubs are designed for Axles with a Short Spindle, and are less common nowadays than the more standardized measurement of 4 1/4 inches. Some Boat Trailers still run with the Short Style Trailer Hub so we offer this kit which includes 1 1/16 inch Bearings (L44649) and Seals as a direct replacement for those found on the older style of axles.

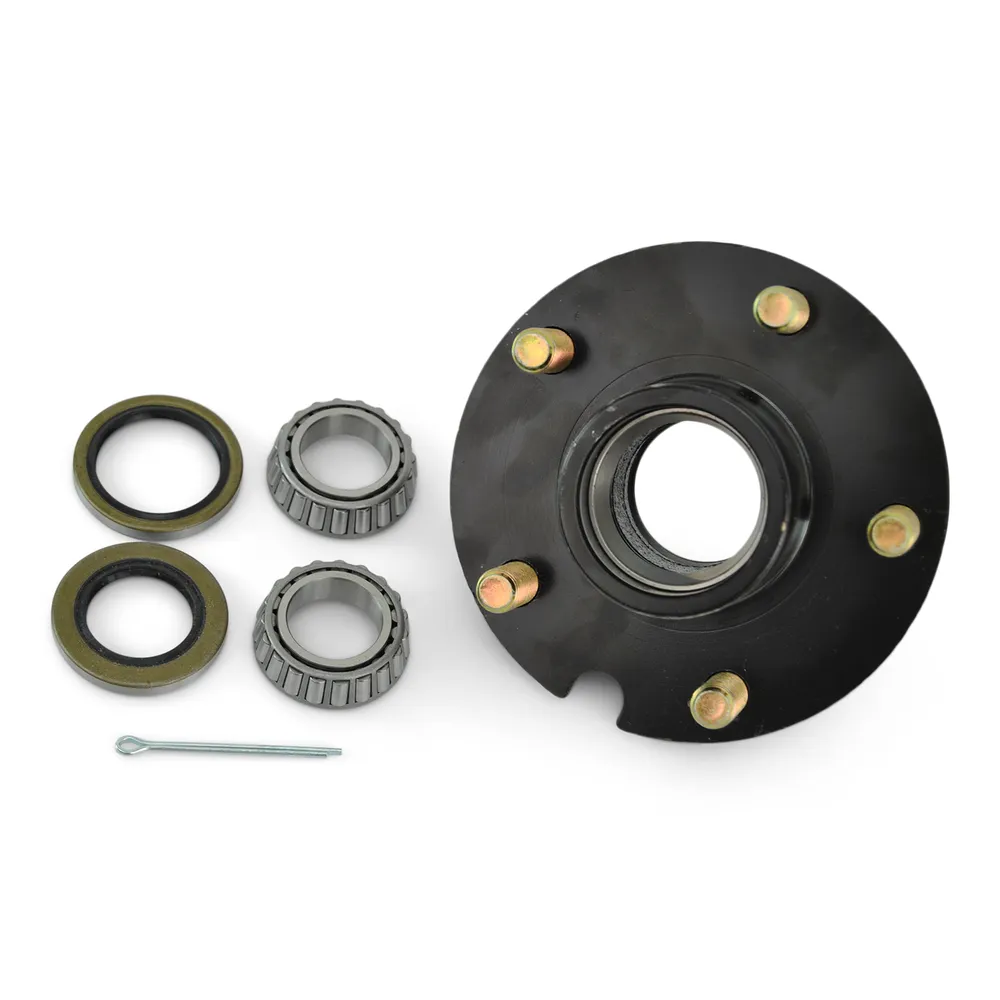

Specifications: Short Hub, 3 1/2 inches – For Short Style Trailer Spindles Only Black Painted Steel Hub Fits 2000-2500lb Axles Includes hub, bearings, and seals Outer Bearing Number 44649, 1 1/16 inch inner diameter Inner Bearing Number 44649, 1 1/16 inch inner diameter Bolt Pattern 5 on 4.5 Rated to 1250 lbs. each The Grease seals included in this kit are a 1 1/4″ Inner Diameter Seal and a 1 1/2″ Inner Diameter Grease Seal. You will only use one of these Sizes on your Axles Spindle. We include both for customer convenience, as sometimes it is very difficult to know which is needed. Test Fit both on your trailers spindle, and discard the one that will not fit. Only one Grease seal is used per hub.
If you’ve ever experienced difficulty installing dust caps, check out this 1.98 Trailer Dust Cap installation Tool for much easier installation.
This Style of Hub Does Not Fit Any Axle Size We Sell. Please Double Check the Measurements Above With Your Axle Before Purchasing.
