These replacement cam locks are commonly used to secure baggage compartment doors.
The round chrome plated face of the lock is 7/8″ diameter and body of lock is inserted through a 3/4″ diameter hole in door. Then the hex retaining nut snugs up against the back the panel.

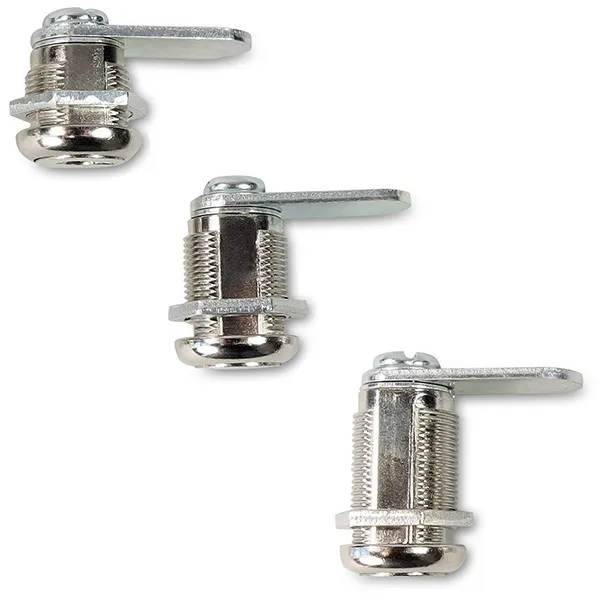

They are available either 5/8″, 7/8″ or 1-1/8″ lengths. The length is measured from the outside face of the door or mounting surface to the front of the straight cam.

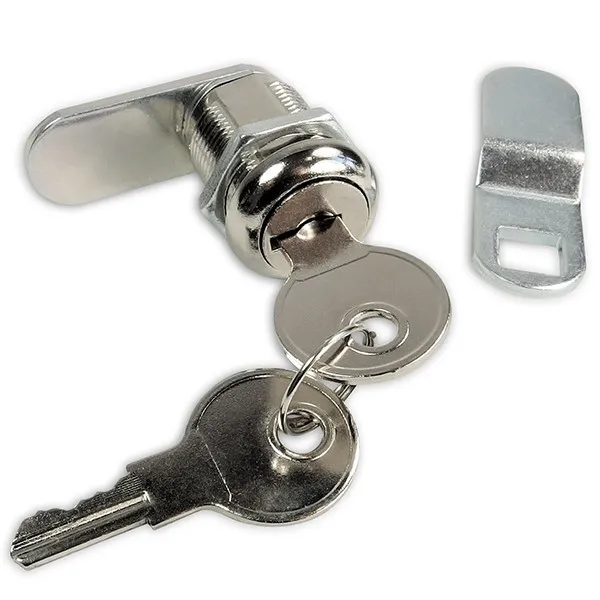

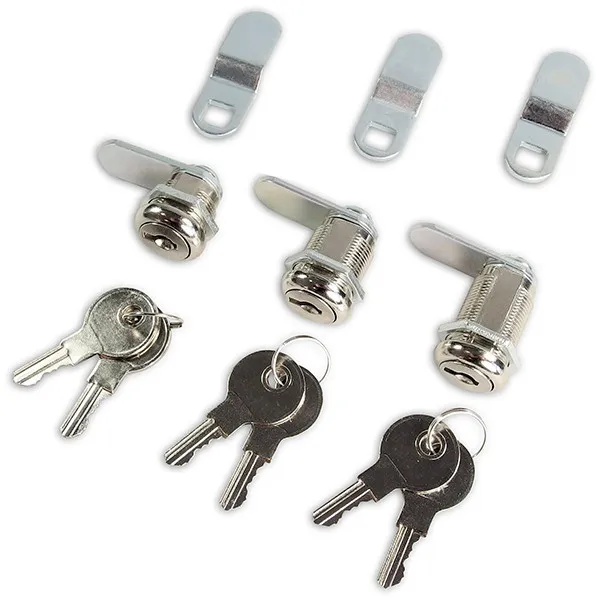

Each comes with both a straight and a 1/4″ offset cam. The 1/4″ offset cam allows for some adjustments in depth.
Two keys are included per lock.
NOTE: All baggage door locks ordered together will be keyed alike, so replacing all at once is recommended.
Hehr assigned these locks the part numbers 010-102 and 010-202.
