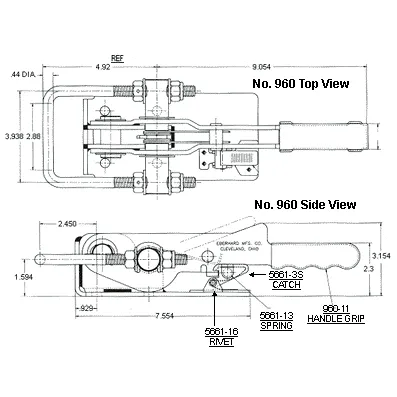

The 960 heavy-duty draw latch for tilt trailers is engineered for applications requiring a secure and adjustable latching mechanism.Commonly used on tilt trailers, cargo doors, and equipment enclosures, this latch provides a strong clamping force with an adjustable loop length.
Features:
-
Rated for up to 8,000 lbs of holding force
-
Adjustable loop length up to 1″ for versatile applications
-
Safety thumb release ensures secure engagement
-
Padlock eye accommodates up to a 3/8″ diameter shackle
-
Stainless steel torsion spring retracts the loop when not in use
Specifications:
-
Material:Steel with E-coat finish
-
Maximum Load:8,000 lbs
-
Adjustment Range:Up to 1″ loop length
-
Padlock Eye:Accepts up to 3/8″ shackle
-
Applications:Tilt trailers, cargo doors, equipment enclosures
