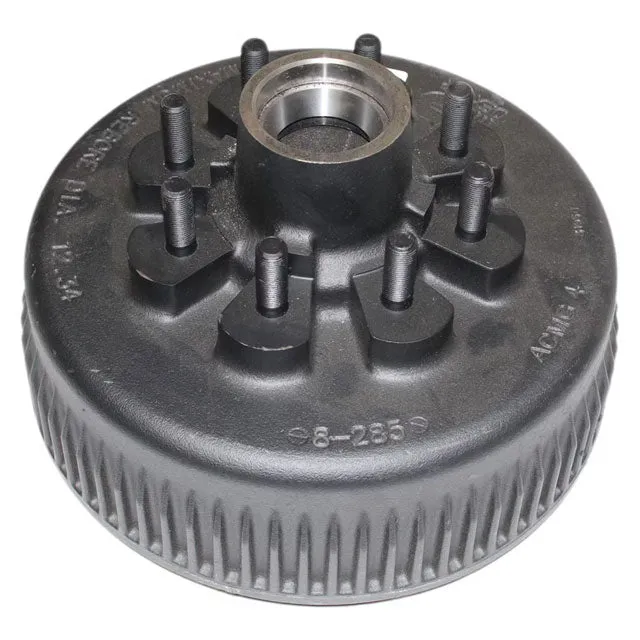

The Dexter 8-285-8 is a non-ABS hub and drum assembly suitable for 8,000 lb trailer axles.It features a 12-1/4″ x 3-3/8″ drum and an 8 on 6.5″ bolt pattern.This assembly comes with pre-installed races and 5/8″ studs, designed for grease lubrication systems.
Features:
-
Non-ABS design for standard braking applications
-
Pre-installed races for ease of installation
-
Equipped with 5/8″ studs
-
Compatible with 12-1/4″ x 3-3/8″ brake assemblies
Specifications:
-
Bolt Pattern: 8 on 6.5″
-
Drum Dimensions: 12-1/4″ diameter x 3-3/8″ wide
-
Stud Size: 5/8″
-
Capacity: 4,000 lbs per hub
-
Designed for 8,000 lb axles with #42 spindles
