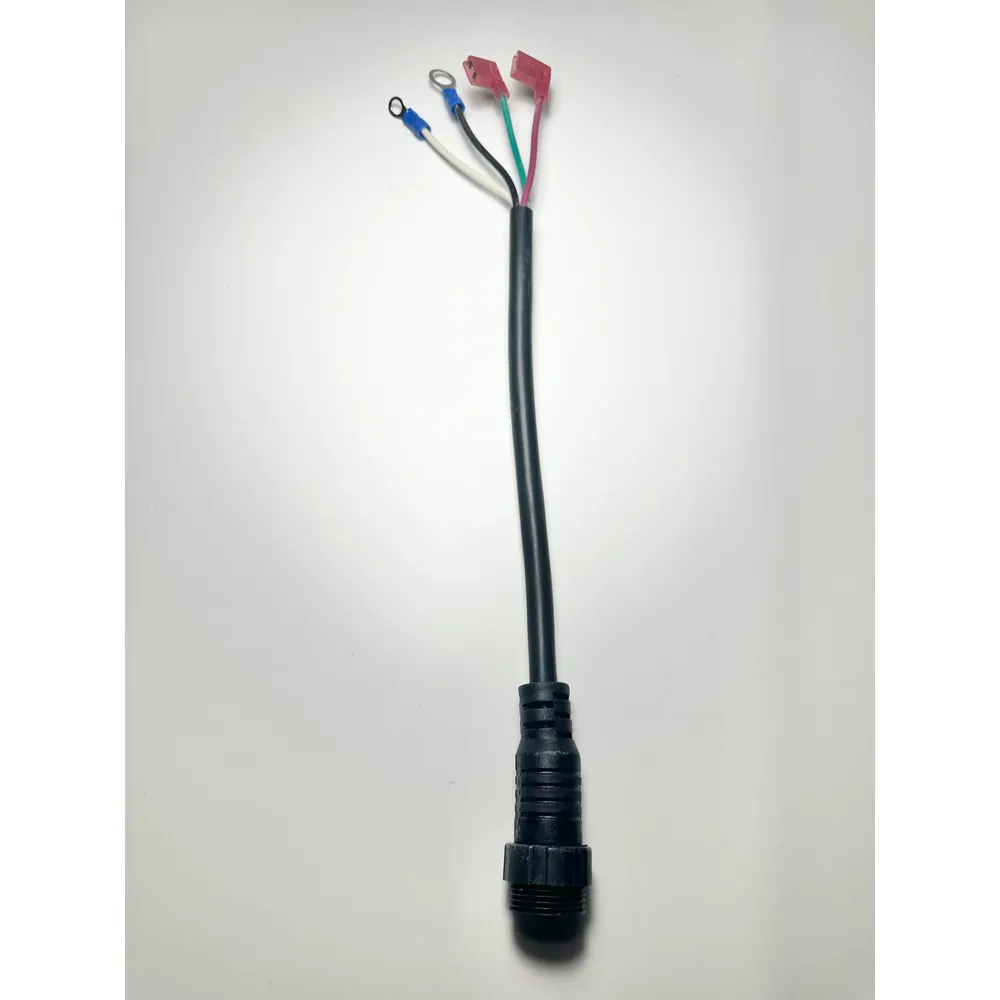

The 74-03 Double Acting Pigtail is a pre-wired, dual-circuit electrical harness designed for use with double-acting hydraulic power units. This pigtail enables the connection between your control pendant and hydraulic pump, providing reliable operation of both raise and lower functions. Color-coded wires and molded connectors ensure quick and secure installation for dump trailers, lift systems, and more.
Features:
- Designed for double-acting hydraulic pumps (raise/lower)
- Durable wiring with molded connector ends
- Color-coded for easy installation
- Ensures smooth operation of dual-direction valves
- Commonly used with 12V trailer pump systems
Specifications:
- Part Number: 74-03
- Type: Double Acting Hydraulic Pigtail
- Wire Type: Multi-conductor harness
- Voltage: 12V DC system compatible
- Connectors: Molded plug with spade terminals or blunt-cut ends (depending on version)
- Length: Varies (commonly 18″–24″, verify exact length)
- Functions: Controls extend and retract solenoid circuits
- Application: Trailer pumps, lift gates, dump bodies
Fitment:
- Compatible with most 12V double-acting hydraulic power units
- Designed to connect handheld controllers or switches to pump motor/solenoids
- Works with commonly used trailer hoist systems
