5 LUG DEXTER/UFP BRAKE KIT 10 INCH 7500LB PG1031
- NOTE. PG1031 IS THE FACTORY REPLACEMENT FOR PG1030 THAT IS NO LONGER AVAILABLE.

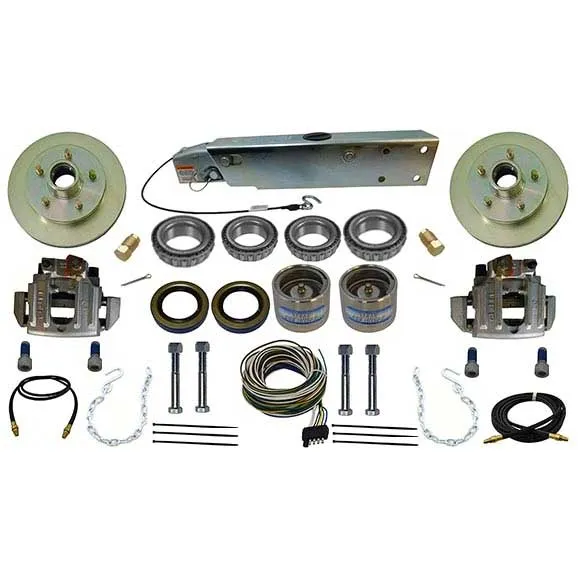

- COMPLETE 10″ DISC BRAKE KIT 7.5K PG1031
- Contains:
- 2ea BEARING 1-1/16″ [44649]
- 2ea BEARING 1-3/8″ [68149]
- 2ea SEAL 1-3/8″[UFP][257-168]
- 1ea BEARING PROTECTOR SET S/S #1.980
- 1ea 7500# ACTUATOR[UFP]IN-LINE 3 HOLE TOP MOUNT
- INSTALLED REVERSE LOCKOUT SOLENOID PG4815 INCLUDED
- 1ea HYD. BRAKE HOSE W/SWIVEL 8′
- 1ea HYD. BRAKE HOSE W/SWIVEL 23′
- 2ea DISC ROTOR AND HUB 10″ 5LUG [UFP]
- 2ea CALIPER FITTING PLUG, UFP # 32212
- 1ea DISC BRAKE CALIPER ASSY LH [UFP DB35]
- 1ea DISC BRAKE CALIPER ASSY RH-[UFP DB35]
- 4ea 7/16″X1″SHCS BOLT [UFP DISC CALIPER
- 1ea 5 WAY FULL GROUND WIRE HARNESS 30′
- 6ea PLASTIC WIRE TIE HD 14-1/2″”
- 2ea 1/4″ CHAIN W/ONE HOOK 40″
- 4ea CAPSCREW PLTD NC 1/2X4 1/2 GR5
- 4ea NUT LOCK NI 1/2-13 PLTD
- SKU:PG1031
- Size:10″
- Bolt Pattern:5Lx4.5″
- Capacity:7,500 lbs
- Spindle:1-1/16″X1-3/8″
- Brand:UFP/DEXTER
PART# PG1030 IS NO LONGER AVAILABLE FROM THE FACTORY. THE REPLACEMENT PART# PG1031 HAS ALL THE SAME PARTS AND COMPONENTS AS THE OLD PG1030 EXCEPT THE ACTUATOR IN THE KIT HAS CHANGED TO PG1091 7500#
