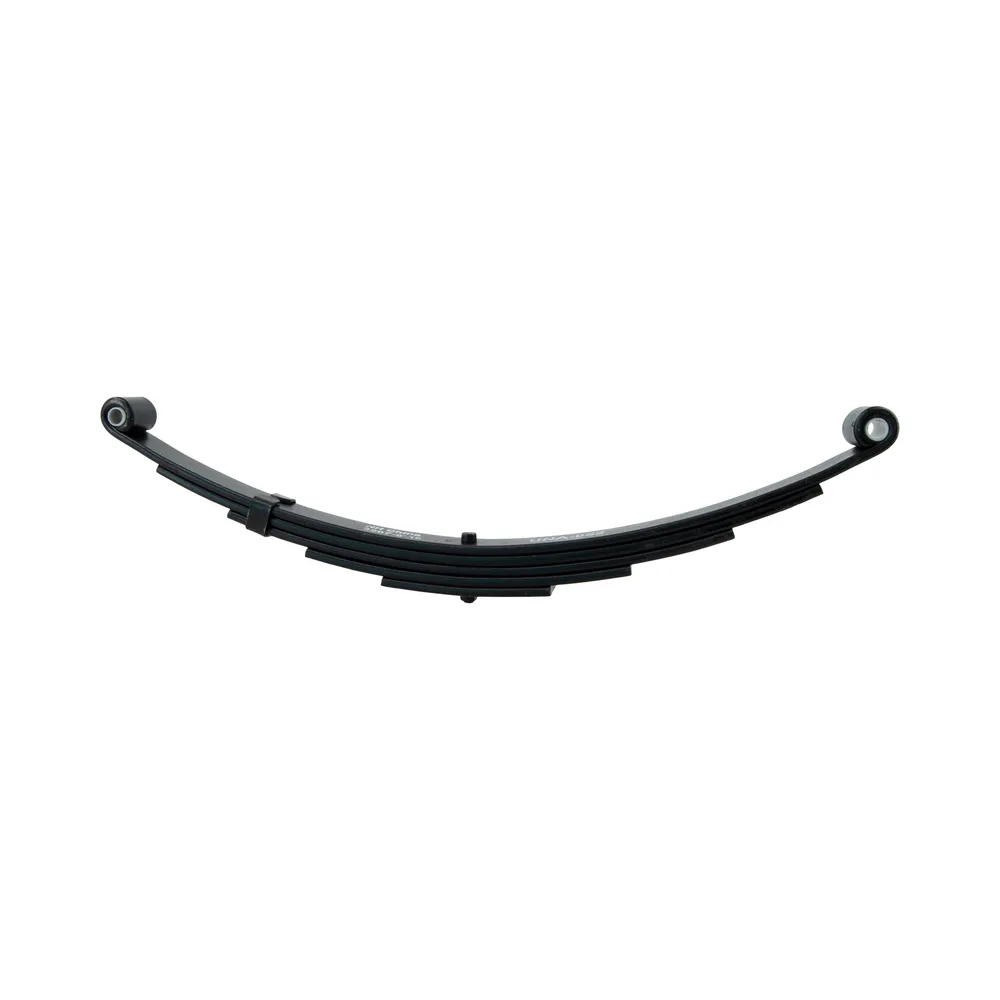

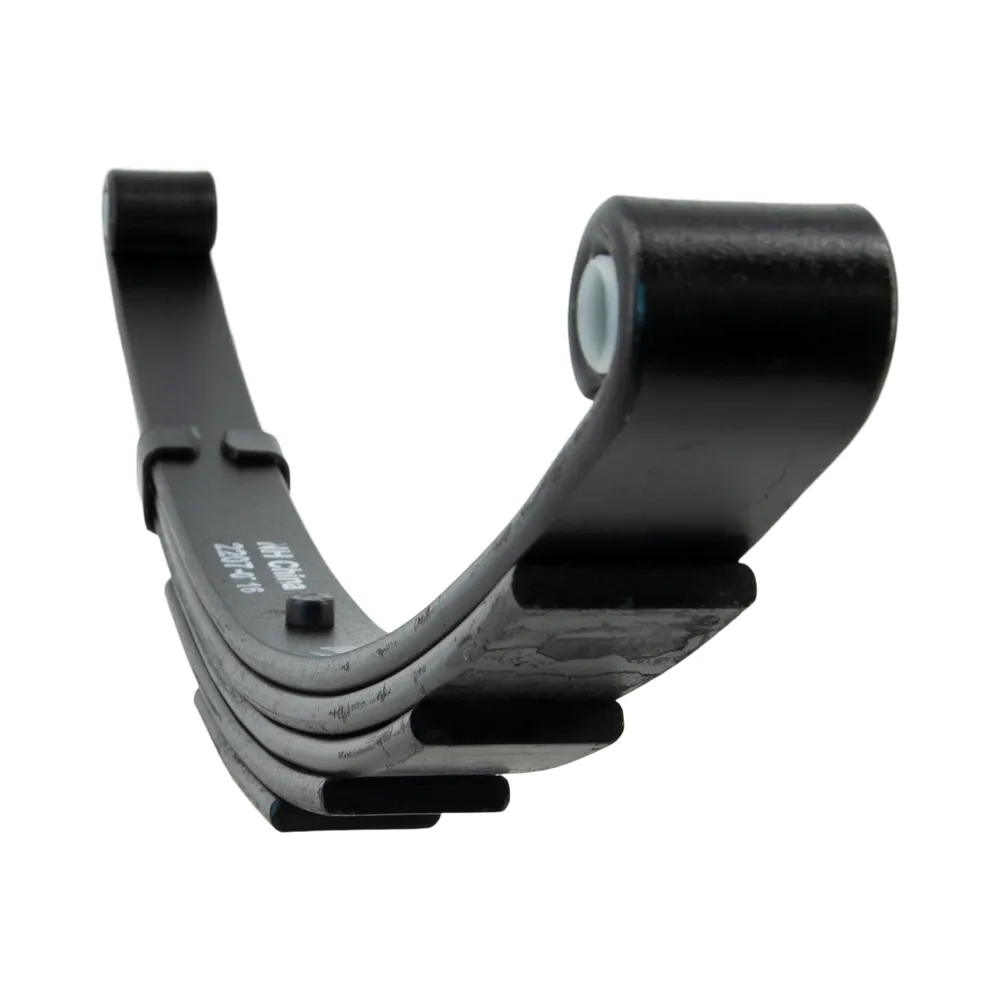

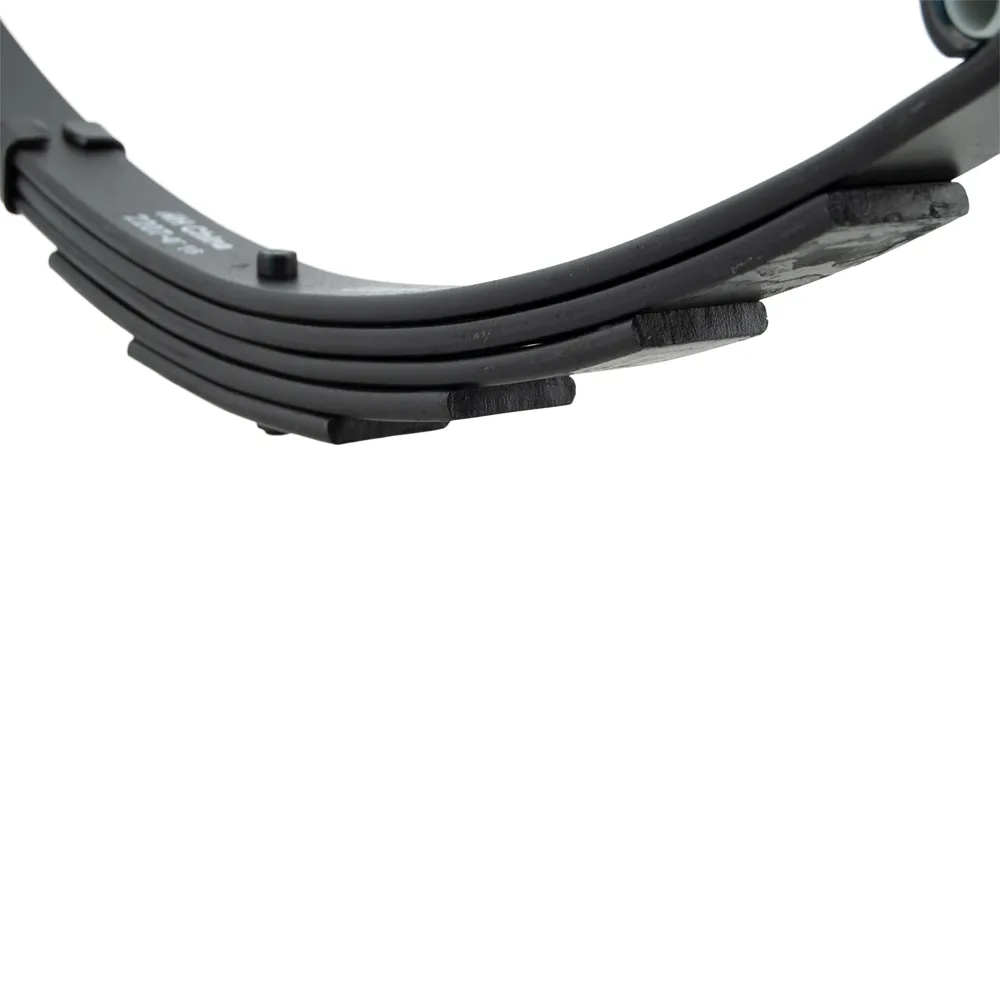

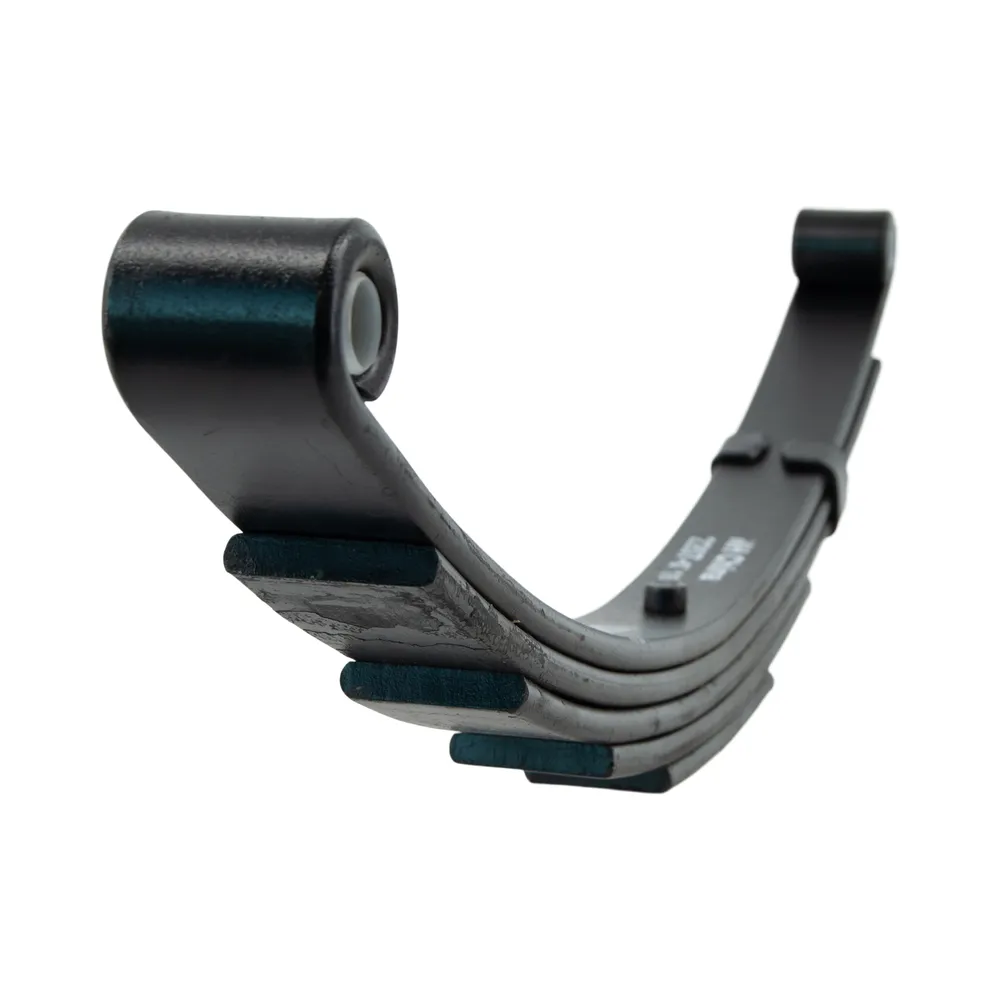

This 26-inch double-eye 5-leaf trailer leaf spring is rated for 2,500 lbs per spring or 5,000 lbs per pair, making it ideal for trailers with up to 5,000 lb axles. The springs are compatible with square and round tube axles, so they are suitable for boat trailers, utility trailers, and enclosed trailers. You will just need to use the right rounded or square U-bolts to attach the springs to your axle. These are commonly used on trailers with 5-lug or 6-lug hubs, and the spring comes with pre-installed 9/16″ bushings, with 1/2″ ID bushings available as an add-on above for those using 1/2″ spring bolts. If you’re looking for a durable and reliable replacement, this heavy-duty double-eye leaf spring is a perfect fit for your trailer!
Spring Specifications:
- Eye to Eye Measurement of 26″ (Free Length Measurement)
- Free Arch Measurement (see picture) of 3″
- Width of 1 3/4″
