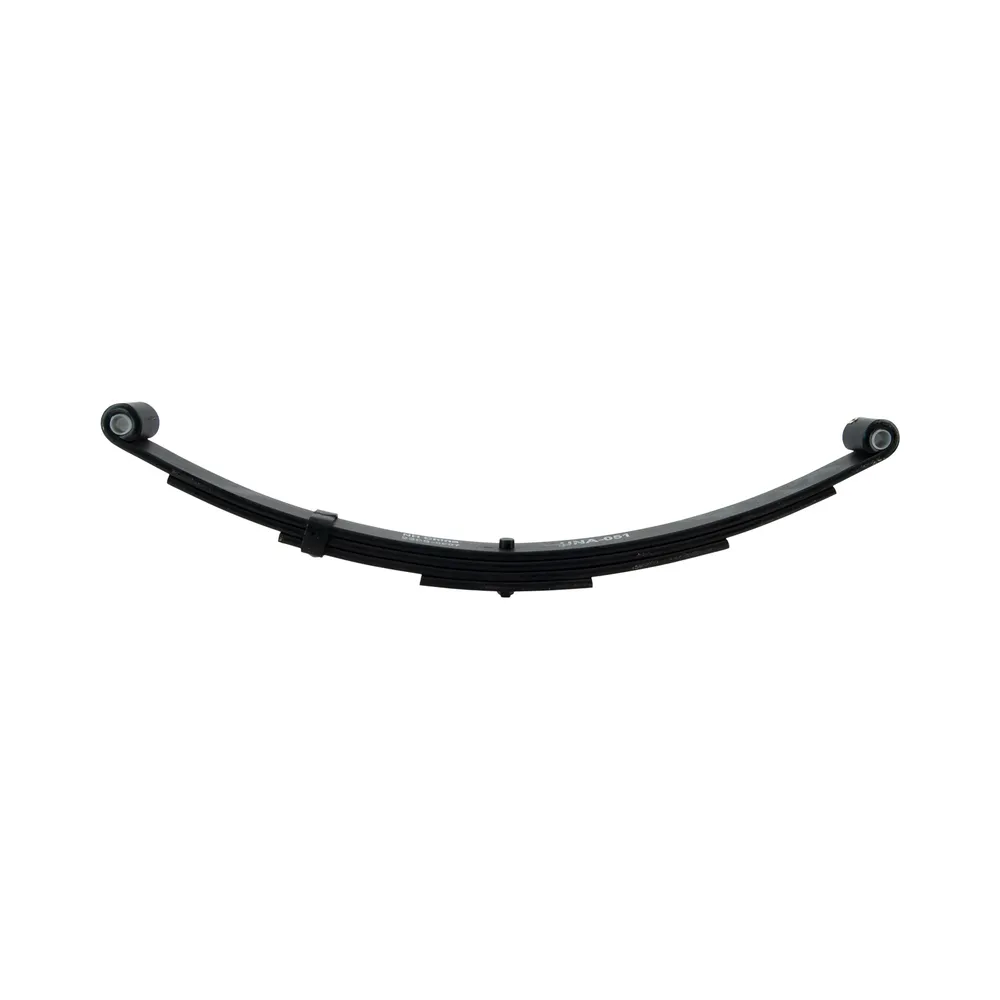

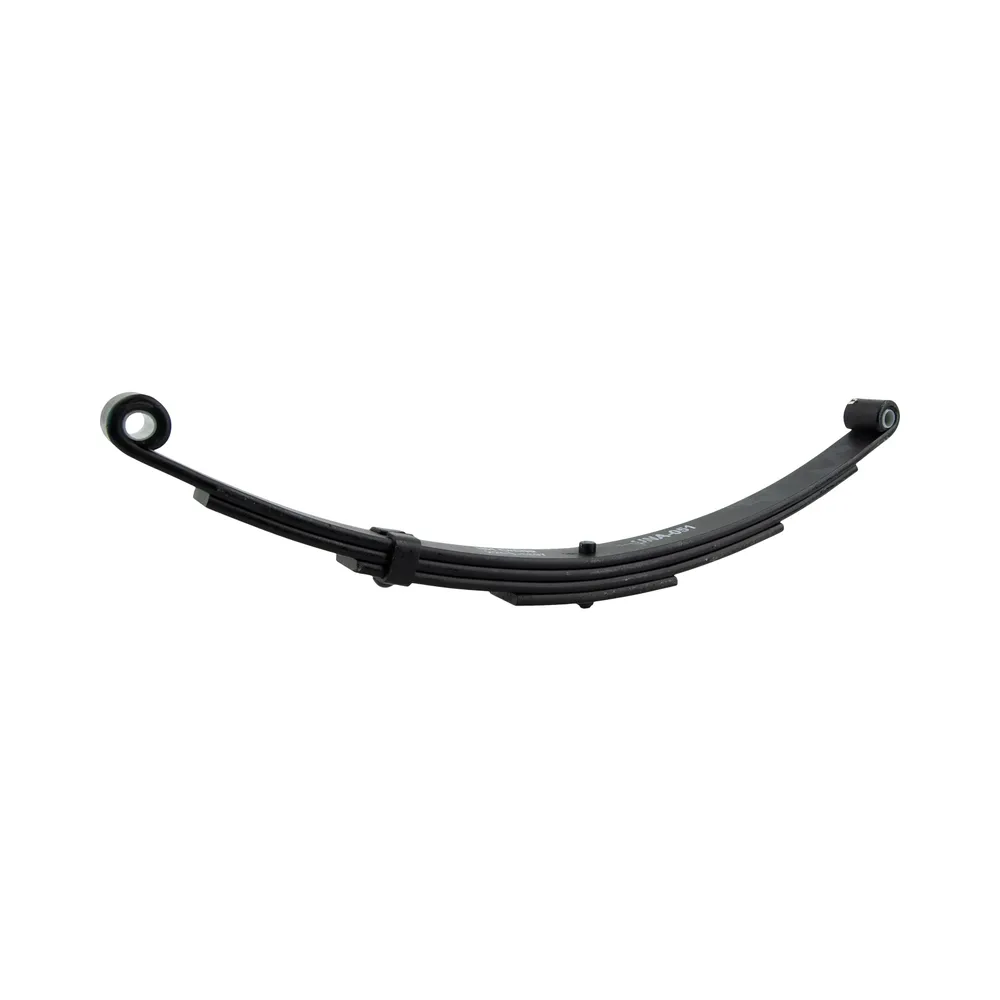

Here we have a Double-Eye 4 Leaf Trailer Leaf Spring which measures 26″ Eye to eye. This Boat Trailer Leaf Spring is Rated to 2,000lbs per spring, for a combined Axle Weight Rating of 4,000lbs. The Spring itself does not come with Hardware, but we do sell mounting hardware separately; what kind you will need is dependent upon your Trailer. If you have a Square Trailer Axle, you will need Square Mounting U Bolts, but if you have a Round Trailer Axle you would need a Round U Bolt Kit.

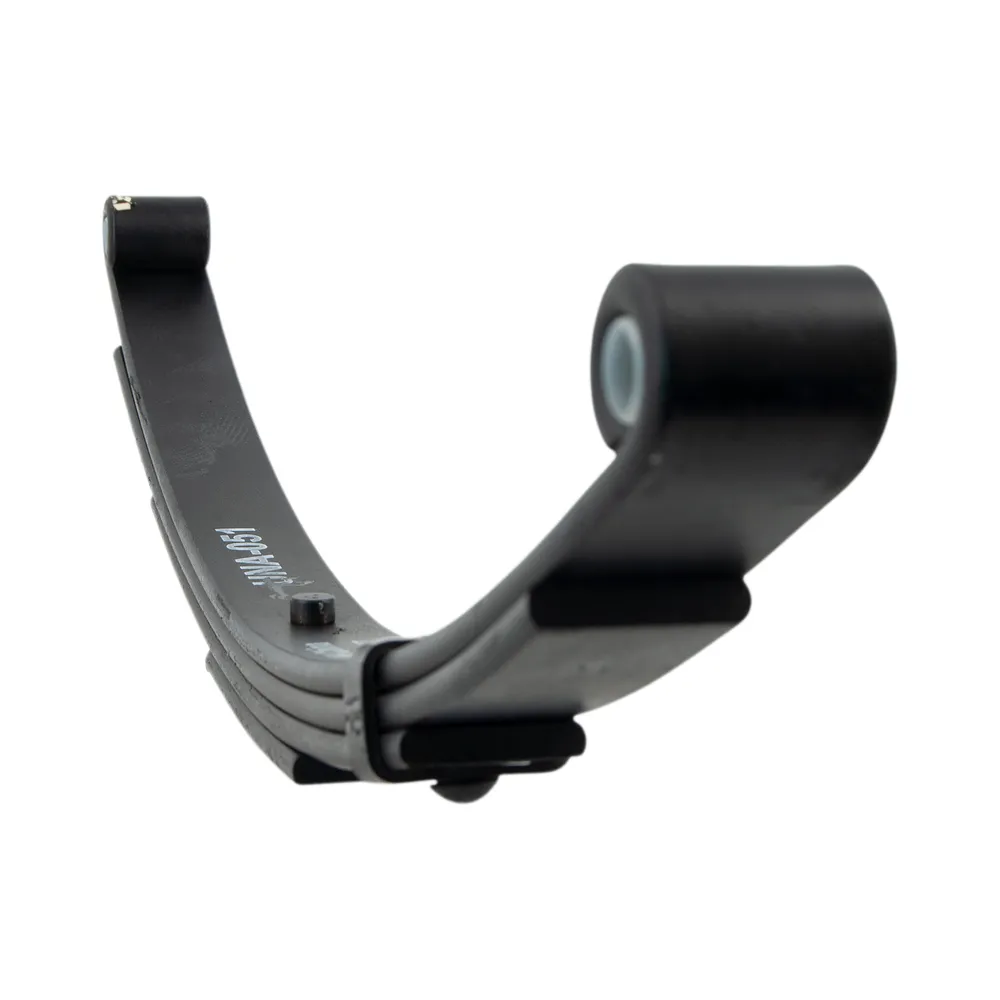

The spring will come with pre-installed 9/16″ bushings, however, the 1/2″ bushings are also available separately if that is the size your trailer requires.
Spring Specifications:

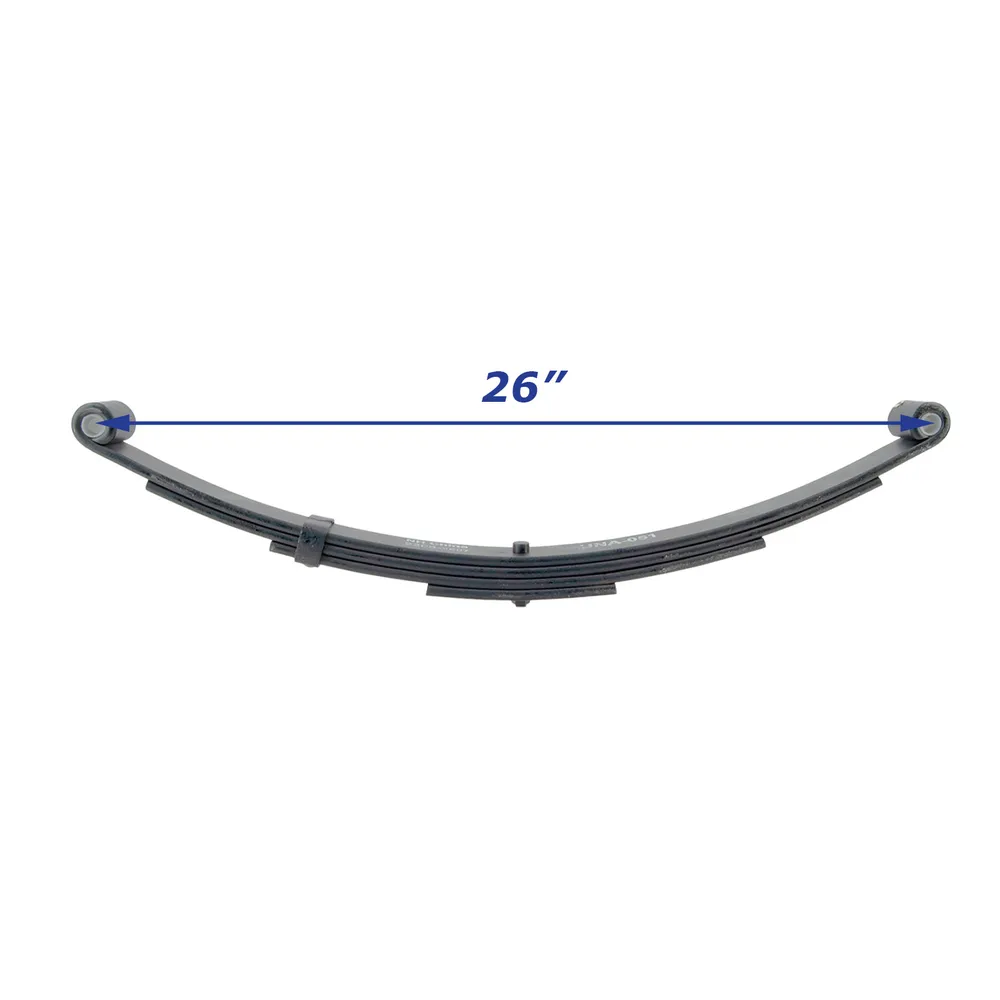

- Eye to Eye Measurement of 26″ (Free Length Measurement)
- Free Arch Measurement (see picture) of 3″
- Width of 1 3/4″
