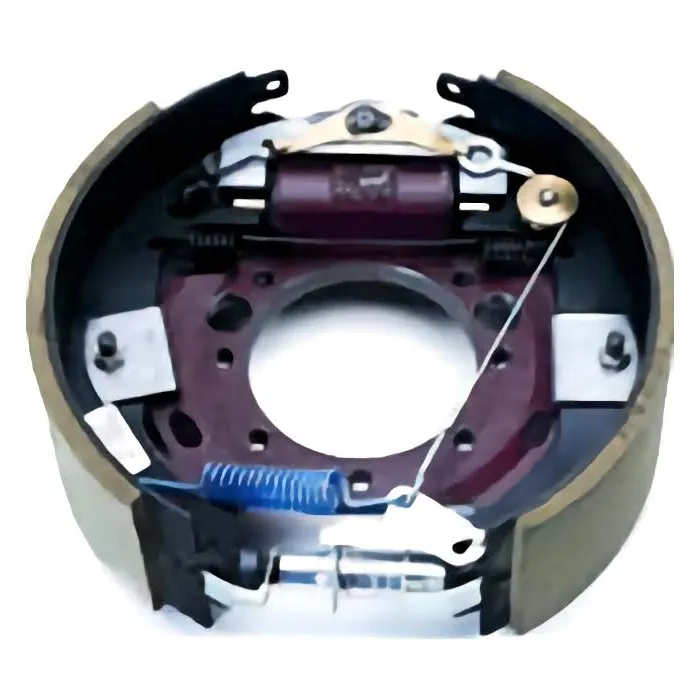

The Dexter 23-406 is a left-hand (driver’s side) hydraulic drum brake assembly designed for 15,000 lb axles.Featuring a 12.25″ diameter and 5″ wide brake shoes, this duo-servo, self-adjusting brake assembly ensures reliable stopping power for your trailer.It mounts using a 7-bolt pattern and is compatible with most standard hub-and-drum assemblies.
Key Features:
-
Application:Designed for 15,000 lb axles
-
Configuration:Left-hand (driver’s side)
-
Brake Size:12.25″ diameter x 5″ wide
-
Mounting Flange Bolt Pattern:7-bolt
-
Adjustment:Forward self-adjusting
-
Installation:Complete assembly ready to bolt on and connect hydraulic line
Specifications:
-
Part Number:23-406
-
Mounting Hardware:Not included
