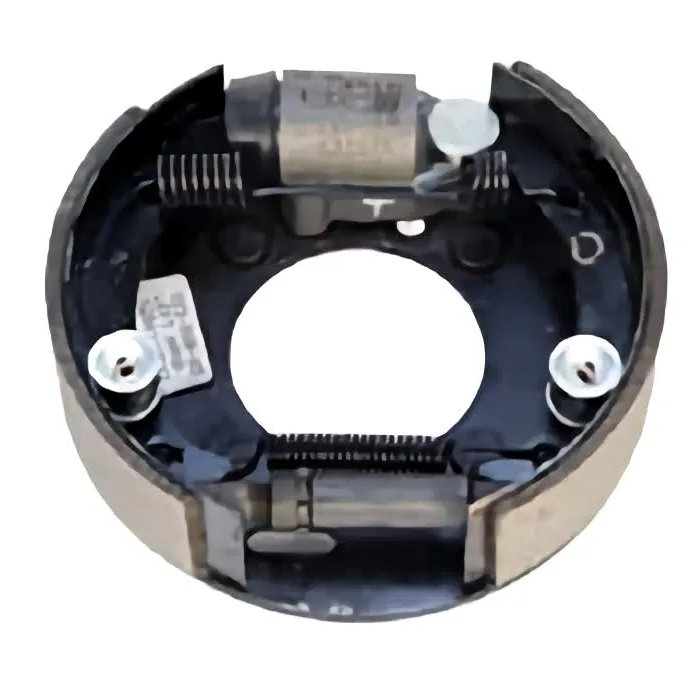

The Dexter 23-398 is a left-hand (driver’s side) hydraulic drum brake assembly designed for trailers with axles rated between 2,000 and 2,500 lbs.Featuring a 7″ diameter and 1.75″ wide brake shoes, this uni-servo brake assembly provides reliable stopping power for your trailer.It mounts using a 4-bolt pattern and is compatible with most standard hub-and-drum assemblies, including Dexter, Lippert (LCI), and AL-KO.
Key Features
-
Application:Designed for 2,000–2,500 lb axles
-
Configuration:Left-hand (driver’s side)
-
Brake Size:7″ diameter x 1.75″ wide
-
Mounting Flange Bolt Pattern:4-bolt
-
Wheel Compatibility:Fits 10″, 12″, and 13″ wheels
-
Adjustment:Manual adjust
-
Installation:Complete assembly ready to bolt on and connect hydraulic line
-
Made in the USA
Specifications
-
Part Number:23-398
-
Mounting Hardware:Included
