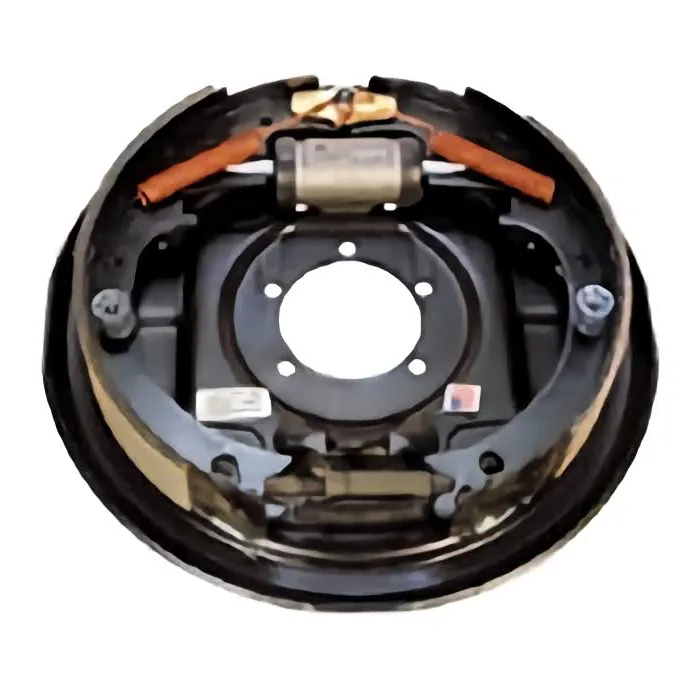

The Dexter 23-337 is a right-hand (passenger side) hydraulic drum brake assembly designed for 7,000 lb trailer axles.Featuring a 12″ x 2″ drum size, this duo-servo brake assembly ensures reliable stopping power for your trailer.It mounts using a 5-bolt pattern and is compatible with most standard hub-and-drum assemblies, including Dexter, Lippert (LCI), and AL-KO.
Key Features
-
Application:Designed for 7,000 lb axles
-
Configuration:Right-hand (passenger side)
-
Brake Size:12″ diameter x 2″ wide
-
Mounting Flange Bolt Pattern:5-bolt
-
Wheel Compatibility:Fits 14-1/2″, 15″, and 16″ wheels
-
Adjustment:Manual adjust
-
Installation:Complete assembly ready to bolt on and connect hydraulic line
-
Made in the USA
Specifications
-
Part Number:23-337
-
Mounting Hardware:Not included; uses 3/8″ mounting bolts (5 required)
