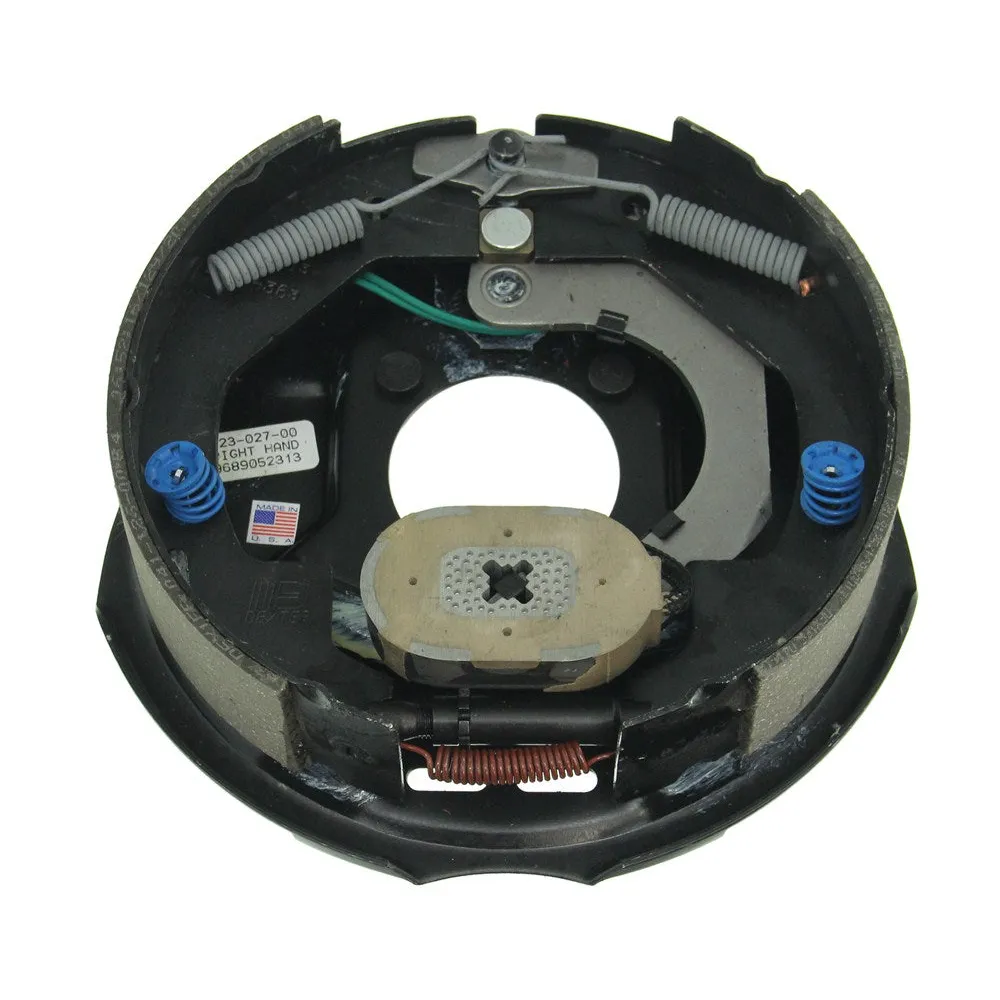

The Dexter 23-27 is a right-hand (passenger side) electric brake assembly designed for 3,500 lb trailer axles.Featuring a 10″ x 2-1/4″ drum size, this manual adjust brake assembly ensures reliable stopping power for your trailer.It mounts using a 4-bolt pattern and is compatible with most standard hub-and-drum assemblies, including Dexter, Lippert (LCI), and AL-KO.
Key Features
-
Application:Designed for 3,500 lb axles
-
Configuration:Right-hand (passenger side)
-
Brake Size:10″ diameter x 2-1/4″ wide
-
Mounting Flange Bolt Pattern:4-bolt (2-7/8″ apart on center)
-
Wheel Compatibility:Fits 13″, 14″, and 15″ wheels
-
Adjustment:Manual adjust
-
Installation:Complete assembly ready to bolt on and wire
-
Made in the USA
Specifications
-
Part Number:23-27
-
Mounting Hardware:Not included; uses nuts (006-017-00) and washers (046-007-00)
