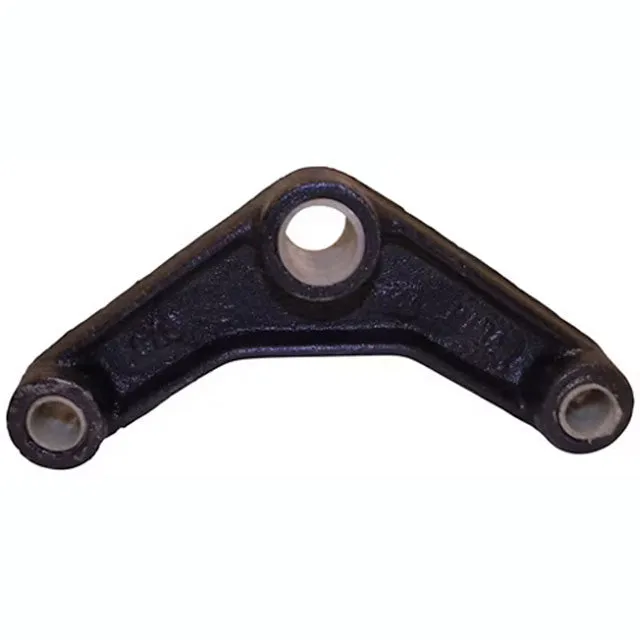

The 220AIT3B Curved Equalizer is a robust suspension component designed to connect double-eye leaf springs on tandem or triple-axle trailers.Its curved design allows for smooth articulation between axles, distributing weight evenly and enhancing ride quality.This equalizer is compatible with 1-3/4″ wide double-eye springs and is ideal for trailers with axle capacities ranging from 2,000 to 7,000 lbs.
Key Features
-
Enhanced Ride Quality:Facilitates smooth movement between axles, reducing stress on the trailer frame and cargo.
-
Durable Construction:Made from high-strength steel to withstand heavy loads and harsh conditions.
-
Standard Compatibility:Fits 1-3/4″ wide double-eye leaf springs with 9/16″ spring eyes.
-
Pre-Installed Bushings:Comes with nylon bushings installed for ease of installation.
Specifications
-
Part Number:220AIT3B
-
Overall Length:7-3/4″ (center to center of outer bolt holes)
-
Center Bolt Hole Diameter: 3/4″
-
Side Bolt Hole Diameter:9/16″
-
Height:2-7/8″
-
Material:High-strength steel with black powder coat finish
-
Axle Capacity Range:2,000 to 7,000 lbs
