22-AXT6035V* Torsion Axles – Galvanized Vee (92 1/2″)
SUSPENSION TRAVEL AND SHOCK ABSORPTION ARE HANDLED BY FOUR RUBBER CORDS INSIDE THE STEEL TUBE HOUSING
ALL GALVANIZED CONSTRUCTION
SUPER LUBE SPINDLES ARE REMOVEABLE FOR EASE OF REPLACEMENT
SPINDLE SIZE: 1 3/8” X 1 1/16”
MAXIMUM CAPACITY: 3500 LBS
FRAME WIDTH: 72”
FLANGE WIDTH: 74 1/4
DOWN ANGLE: 30 Degrees

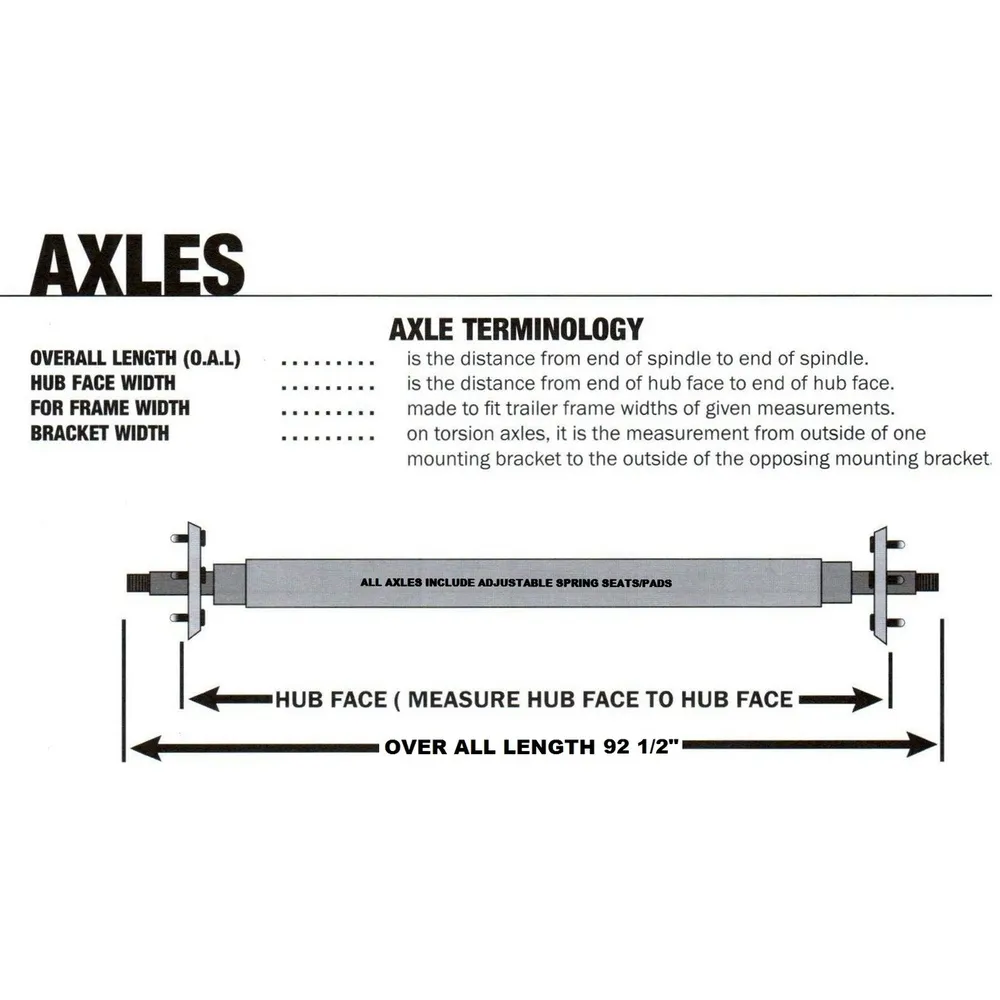

OVERALL LENGTH: 92 1/2”
* NOT REMOVEABLE SPINDLES
