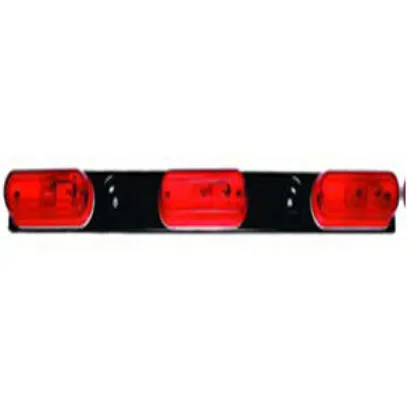

The 136-3R Identification Light Bar is a 3-lamp, incandescent lighting solution designed for mounting at the rear center of wide trailers. Featuring a durable steel housing and red lenses, it improves visibility and helps meet DOT requirements for trailers over 80″ wide.
Features:
- 3 sealed red incandescent lights
- Pre-wired for easy installation
- Durable steel bar with corrosion-resistant finish
- Surface mount with center bolt holes
- Meets FMVSS/CMVSS 108 requirements for rear trailer lighting
Specifications:
- Part Number: 136-3R
- Light Type: Incandescent
- Number of Lamps: 3
- Color: Red
- Voltage: 12V
- Bar Length: Approx. 14-1/4″
- Mounting Type: Surface mount
- Wiring: 3-wire system (ground, tail, and stop/turn)
- Material: Steel base with polycarbonate lenses
- DOT/SAE Compliant: Yes
Fitment & Applications:
- Required on the rear of trailers 80″ or wider
- Common on enclosed, flatbed, livestock, and utility trailers
- Replaces or upgrades existing 3-lamp ID light bars
